Mobile Floor Standing Horizontal Electric Two Roll Mill PST‑MHR

Technical Specification


Electrical connection : 400 Volt, 3 phase and ground
Installed power rating : 2,2 [kW]
0 Volt safety
Standard Workheight : 1,2 [M]

Roll width: 0,75 [M]
Roll diameter: 0 ,2 [M]
GAP minimum I maximum : 0 - 15 [mm]
Rotation speed : variable 1 to 30 RPM

Mass : 420 [kG]
Dimension : L x W x H : 1,2 x 0,85 x 1,45 [M]





Mobile Horizontal Electric Roll Mill PST‑MHR

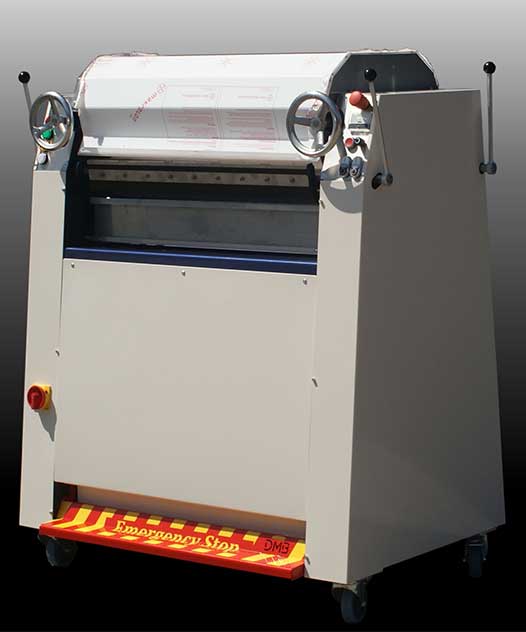

Mobile Floor Standing Horizontal Electric Two Roll Mill PST­MHR
For Milling and Calendering 2 Part Silicone
for suitable products see VersaSil product range.

VersaSil³

Medically Approved Silicones
Medically Approved Silicones

PDF Brochure

Download our detailed PDF Brochure
Download our detailed PDF Brochure

Detail 1

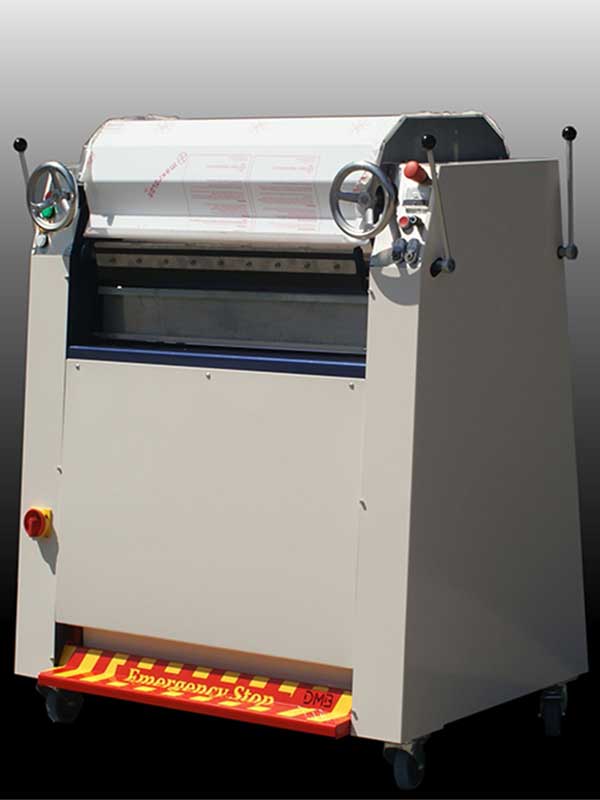

Adjustable Roll Mill - Lid closed
Adjustable Roll Mill - Lid closed

Detail 2

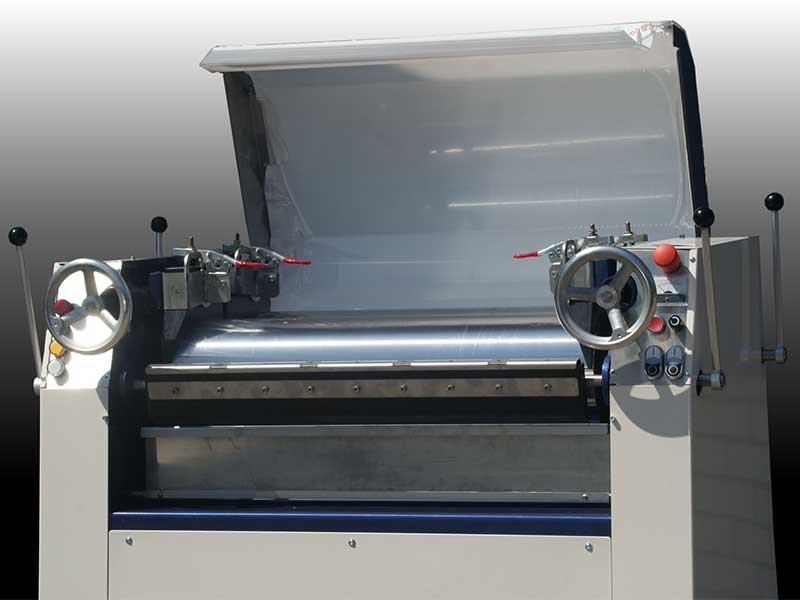

Adjustable Roll Mill - Front Controls with lid open
Front Controls with lid open

Detail 3

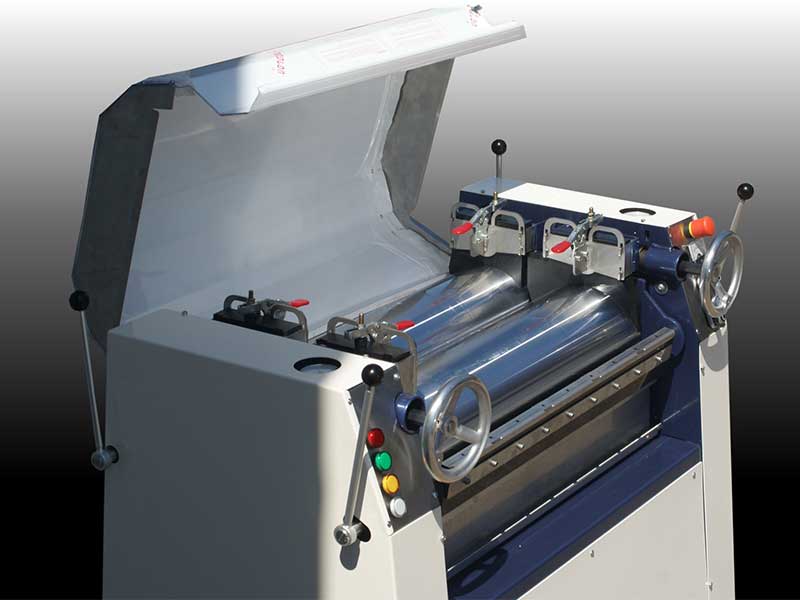

Adjustable Roll Mill - View top left lid open
View top left lid open

Detail 4

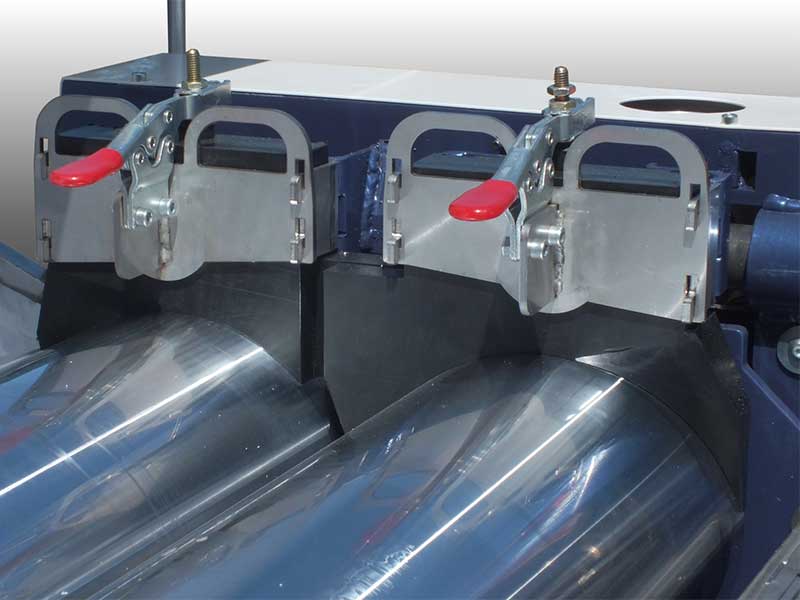

Adjustable Roll Mill - Detail of Roller Controls
Detail of Roller Controls

Detail 5

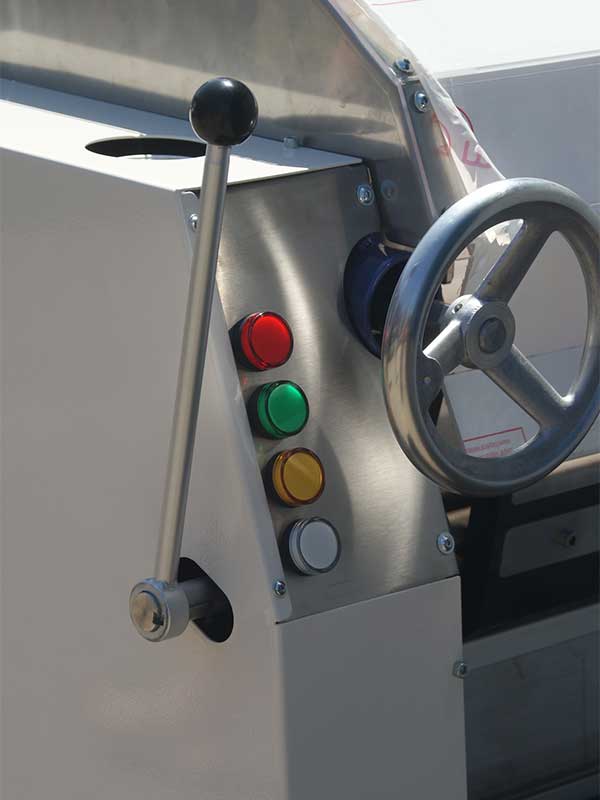

Adjustable Roll Mill - Left hand controls
Left hand controls

Detail 6

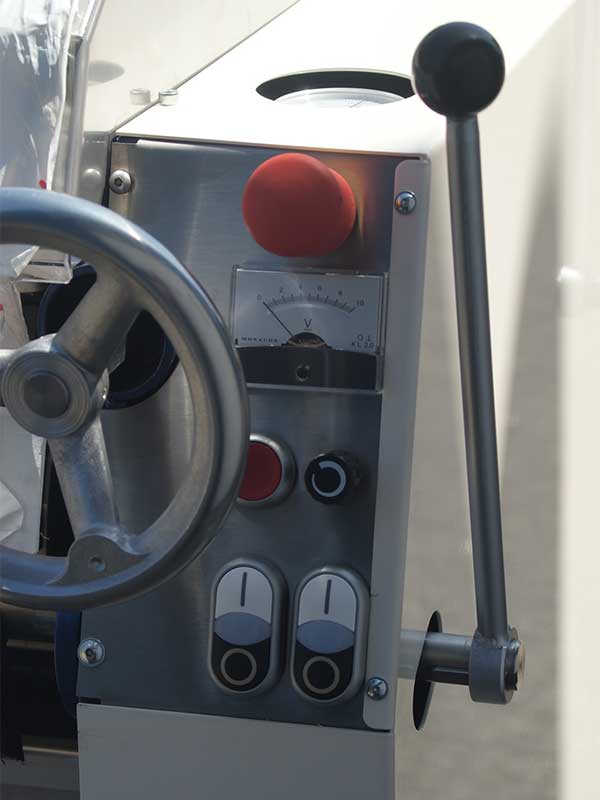

Adjustable Roll Mill - Right hand controls
Right hand controls
