CV-2681-12

Adhesives,Adhesives/Sealants

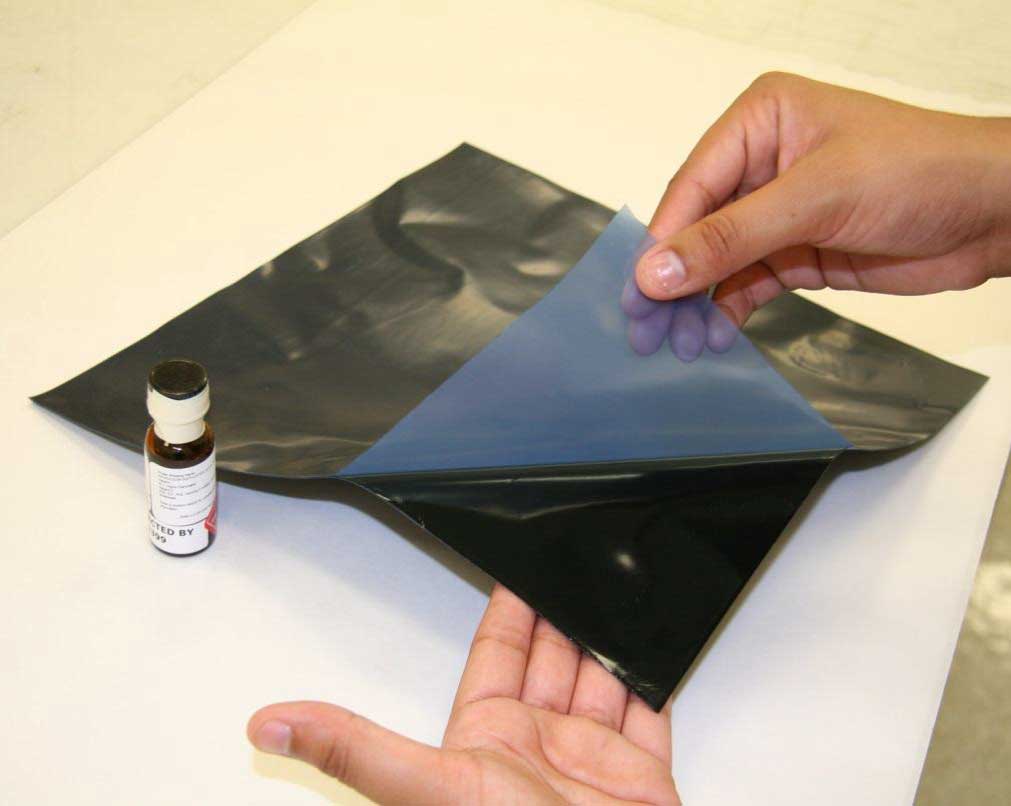

Controlled Volatility Electrically Conductive Film Adhesive

DESCRIPTION
  • Two-part, electrically conductive film adhesive
APPLICATION
  • For electronic and space applications requiring low outgassing and minimal volatile condensables to avoid condensation in sensitive devices
  • Use for RFI and EMI shielding in electrical and space applications
  • For bonding or sealing silicone elastomers and some metals or plastics
  • For applications requiring shorter work times, easy clean-up, and consistent bond thickness
  • For applications requiring a broader operating temperature range
PROPERTIES
Typical PropertiesAverage Result
Uncured:
Appearance, Part ABlack
Appearance, Part BTranslucent
Dimensional Analysis, Thickness0.013 inches (0.3 mm)
Cured: 4 hours at 65°C (149°F)
Lap Shear Strength70 psi (0.48 MPa)
Volume Resistivity125 ohm cm
Collected Volatile Condensable Material (CVCM)0.06%
Total Mass Loss (TML)0.35%

Properties tested on a lot-to-lot basis. Do not use the properties shown in this technical profile as a basis for preparing specifications. Please contact NuSil Technology for assistance and recommendations in establishing particular specifications.

Packaging

12"x 12"Sheet Kit
(30.48 x 30.48 cm)

Warranty

6 Months

Product Profile - Full Details Product Profile
Two-part film adhesive. For bonding or sealing silicone elastomers and some metals or plastics.
Two-part film adhesive. For bonding or sealing silicone elastomers and some metals or plastics.


WARRANTY INFORMATION

The warranty period provided by Polymer systems Technology ltd (hereinafter “PST”) is from the date of shipment when stored below 40°C in original unopened containers. Unless PST provides a specific written warranty of fitness for a particular use, PST’s sole warranty is that the product will meet PST’s then current specification. PST specifically disclaims all other expressed or implied warranties, including, but not limited to, warranties of merchantability and fitness for use. The exclusive remedy and PST’s sole liability for Packaging Warranty 50 mL Side-by-Side Kit 200 mL Side-by-Side Kit 400 ml Side-by-Side Kit 2 Pint Kit (910 g) 2 Gallon Kit (7.28 kg) 10 Gallon Kit (36.4 kg), Inc. All rights reserved. Trademarks are owned by PST or its affiliates unless otherwise noted. breach of warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted. PST expressly disclaims any liability for incidental or consequential damages.



WARNINGS ABOUT PRODUCT SAFETY

PST believes, to the best of its knowledge, that the information and data contained herein are accurate and reliable. The user is responsible to determine the material’s suitability and safety of use. NuSil Technology cannot know each application’s specific requirements and hereby notifies the user that it has not tested or determined this material’s suitability or safety for use in any application. The user is responsible to adequately test and determine the safety and suitability for their application and NuSil Technology makes no warranty concerning fitness for any use or purpose. PST has completed no testing to establish safety of use in any medical application. PST has tested this material only to determine if the product meets the applicable specifications. (Please contact PST for assistance and recommendations when establishing specifications.) When considering the use of PST products in a particular application, review the latest Material Safety Data Sheet and contact PST with any questions about product safety information. Do not use any chemical in a food, drug, cosmetic, or medical application or process until having determined the safety and legality of the use. The user is responsible to meet the requirements of the U.S. Food and Drug Administration (FDA) and any other regulatory agencies. Before handling any other materials mentioned in the text, the user is advised to obtain available product safety information and take the necessary steps to ensure safety of use.



PATENT / INTELLECTUAL PROPERTY WARNING

PST disclaims any expressed or implied warranty against the infringement of any domestic or international patent/intellectual property right. PST does not warrant the use or sale of the products described herein will not infringe the claims of any domestic or international patent/intellectual property right covering the product itself, its use in combination with other products, or its use in the operation of any process.
