Space:

CV7-1142-1

Adhesives/Sealants

Non-Corrosive Controlled Volatility RTV Silicone

DESCRIPTION
  • One-Part, white, non-slumping silicone RTV
APPLICATION
  • For applications requiring low outgassing and minimal volatile condensables under extreme operating conditions
  • As a sealing, caulking, adhesive or potting material in electrical and space applications to provide protection of sensitive circuits including in connectors, switches and electrical components
  • For sealing openings in modules or housings where grooves or other configurations require a non-flowable to limited flow material
  • For applications requiring a broader operating temperature range
PROPERTIES
Typical PropertiesAverage Result
Uncured:
Appearance*White
Tack-Free Time*20 minutes
Flow*0.7 inches (1.8 cm)
Extrusion Rate* †20 g/min
Cured: 7 days minimum at ambient temp. and humidity
Appearance*White, Elastomer
Specific Gravity*1.13
Durometer, Type A*40
Tensile Strength*700 psi (4.8 MPa)
Elongation*300%
Tear Strength*60 ppi (10.6 kN/m)
Coefficient of Linear Thermal Expansion
Below Tg (-150°C to -115°C)90 ppm/°C (90µm/m/°C)
Above Tg (-95°C to 250°C)320 ppm/°C (320µm/m/°C)
Dielectric Strength1,180 volts/mil (46.5 kV/mm)
Collected Volatile Condensable Material (CVCM)*0.04%
Total Mass Loss (TML)*0.39%

*Properties tested on a lot-to-lot basis. Do not use the properties shown in this technical profile as a basis for preparing specifications. Please contact NuSil Technology for assistance and recommendations in establishing particular specifications.

†(Performed using a SEMCO® 440 nozzle with a 1/8" orifice and 90± 5 psi air pressure)

Packaging

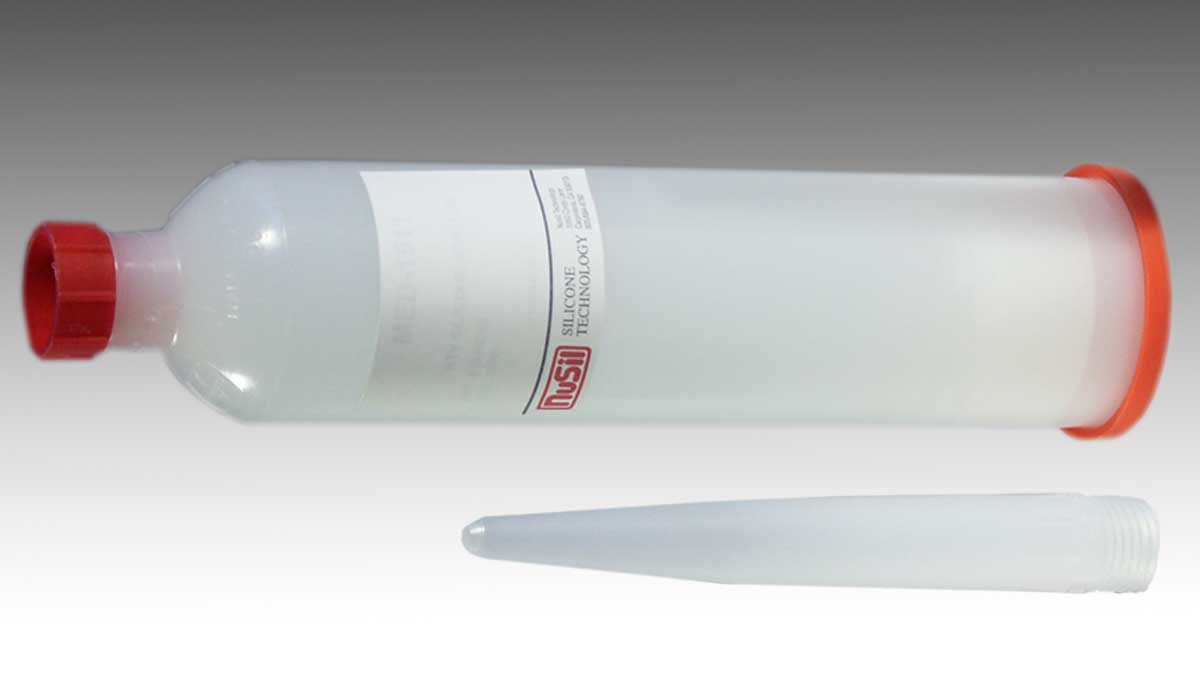

6 Ounce Tube (177 mL)
Warranty

12 Months
