FS-3511

Molding Elastomer,Liquid Silicone Rubbers

Liquid Injection Molding Fluorosilicone Elastomer

DESCRIPTION
  • Two-part, translucent, fluorosilicone elastomer used with liquid injection molding equipment
  • 1:1 Mix Ratio (Part A: Part B)
  • Cures rapidly with heat
  • 100 mol % fluorosilicone
APPLICATION
  • For components exposed to JP-8, aviation fuels and solvents
  • For applications requiring a medium hardness silicone with solvent resistance
  • Some typical applications include O-rings, gaskets, seals, and precision molded parts
  • Excellent for molding high quality parts at rapid rates
PROPERTIES
Typical PropertiesAverage Result
Uncured:
AppearanceTranslucent
Extrusion Rate, Part A †40 g/min
Extrusion Rate, Part B †35 g/min
Work Time> 24 hours
Cured: 30 min at 150°C (302°F) Stabilize for 3 hrs at ambient temperature
Specific Gravity1.39
Durometer, Type A40
Tensile Strength1,150 psi (7.9 MPa)
Elongation335%
Tear Strength60 ppi (10.6 kN/m)

Properties tested on a lot-to-lot basis. Do not use the properties shown in this technical profile as a basis for preparing specifications. Please contact NuSil Technology for assistance and recommendations in establishing particular specifications.

†(Performed using a SEMCO® 440 nozzle with a 1/8" orifice and 90± 5 psi air pressure)

Recommended Primer CF1-135

Note: Some bonding applications may require the use of a primer.

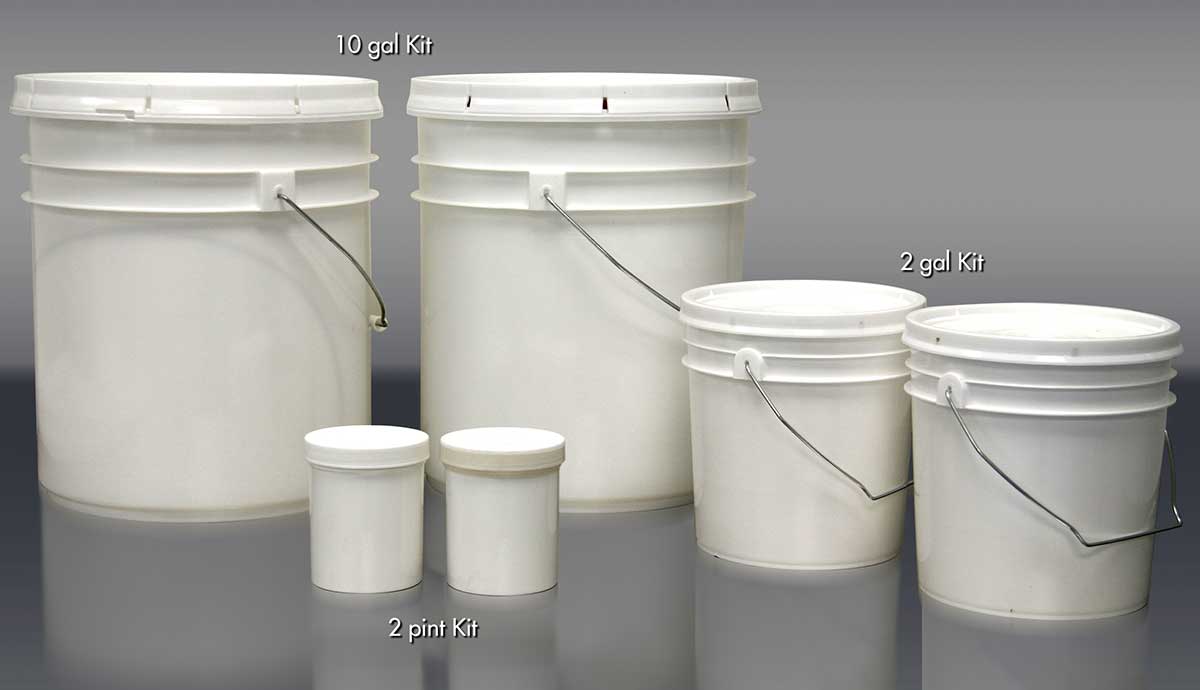

Packaging

50 mL SxS Kit
200 mL SxS Kit
400 mL SxS Kit
2 Pint Kit (910 g)
2 Gallon Kit (7.28 kg)
10 Gallon Kit (36.4 kg)
2 Drum Kit (360.0 kg)

Warranty

12 Months
