R-2186

Adhesives/Sealants

General Purpose Silicone Elastomer

DESCRIPTION
  • Two-part, translucent, pourable silicone system
  • 10:1 Mix Ratio (Part A:B)
  • Cures at room temperature or rapidly with heat
  • High tear strength and good physical properties
APPLICATION
  • To provide protection of electronic components and assemblies against shock, vibration, moisture, ozone, dust, chemicals and other environmental hazards
  • Ideal for molding or use in O-rings, potting connectors, cable harness breakouts, molded high voltage terminals, seals and gaskets due to its high physical strength
  • For applications requiring an operating temperature range of -65 to 240°C (-85 to 465°F)
°
PROPERTIES
Typical PropertiesAverage ResultMetric Conv.
Uncured:
AppearanceTranslucent-
Viscosity, Part A83,000 cP83,000 mPas
Work Time2.5 hours-
Cured: 15 min at 150°C (302°F)
Specific Gravity1.12-
Durometer, Type A30-
Tensile Strength1,050 psi7.2 MPa
Elongation450%-
Tear Strength100 ppi17.6 kN/m
Lap Shear Strength (primed w/ CF1-135)475 psi3.3 MPa
Dielectric Strength640 volts/mil25.2 kV/mm

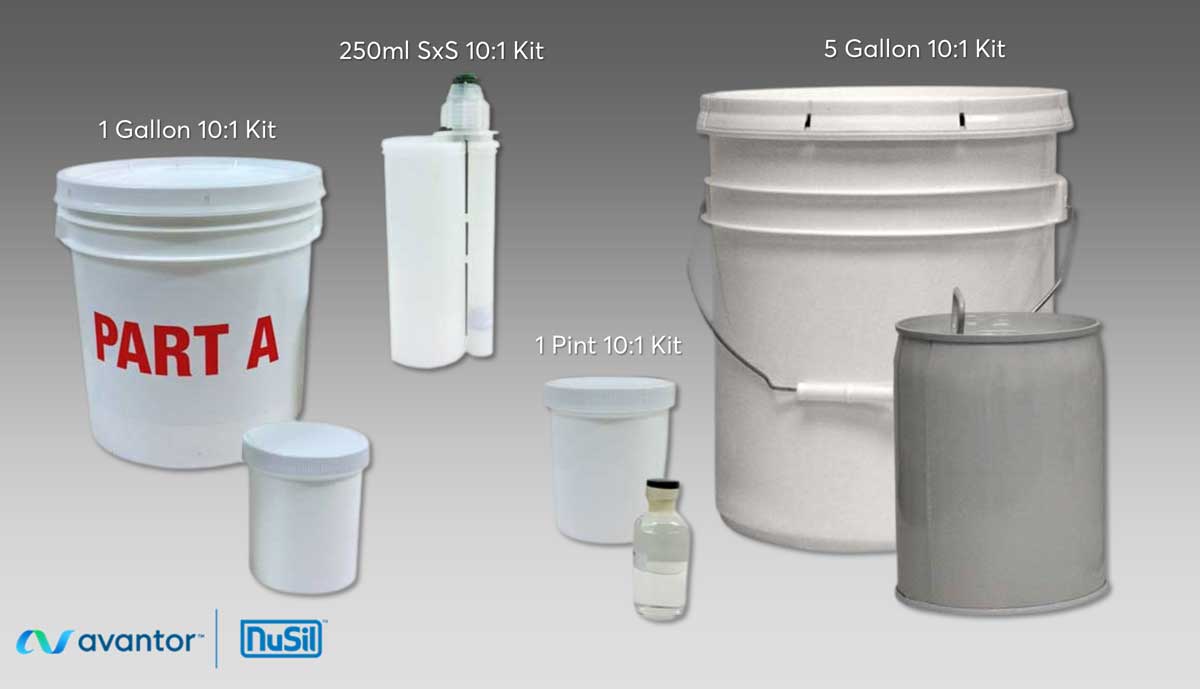

Packaging

37 ml SxS Kit
250 ml SxS Kit
1 Pint Kit (505 g)
1 Gallon Kit (4.04 kg)
5 Gallon Kit (20.2 kg)

Warranty

6 Months
