R-2634

Adhesives/Sealants,Electrically Conductive/Static Dissipative

Electrically Conductive RTV Silicone

DESCRIPTION
  • Two-part, electrically conductive RTV Silicone
  • Designed for enhanced performance in extreme low and high temperatures
  • 100:0.5 Mix Ratio (Base:Curing Agent)
APPLICATION
  • For RFI and EMI shielding for electrical and aerospace applications
  • Excellent for formed-in-place conductive gaskets and grounding connections
  • Use to adhere covers on housings or where grooves or other configurations require a non-flowable to limited flow material
PROPERTIES
Typical PropertiesAverage Result
Uncured:
AppearanceGray-green
Flow (0.500 plunge)1.2 inches (30.5 mm)
Work Time3 hours
Extrusion Rate160 gram/minute
Cured: 7 days at ambient temperature and humidity
Specific Gravity3.41
Durometer, Type A80
Tensile Strength250 psi (1.7 MPa)
Elongation90%
Tear Strength50 ppi (8.8 N/mm)
Lap Shear Strength (primed w/ SP-121)200 psi (1.4 MPa)
Volume Resistivity0.001 ohm cm

Properties tested on a lot-to-lot basis. Do not use the properties shown in this technical profile as a basis for preparing specifications. Please contact NuSil Technology for assistance and recommendations in establishing particular specifications.

Recommended Primer SP-121

Note: Some bonding applications may require the use of a primer.

Packaging

6 oz. Kit
50 Gram Kit
100 Gram Kit
180 Gram Kit

Warranty

12 Months

Product Profile - Full Details Product Profile
Safety Data Sheet Material Safety Data Sheet

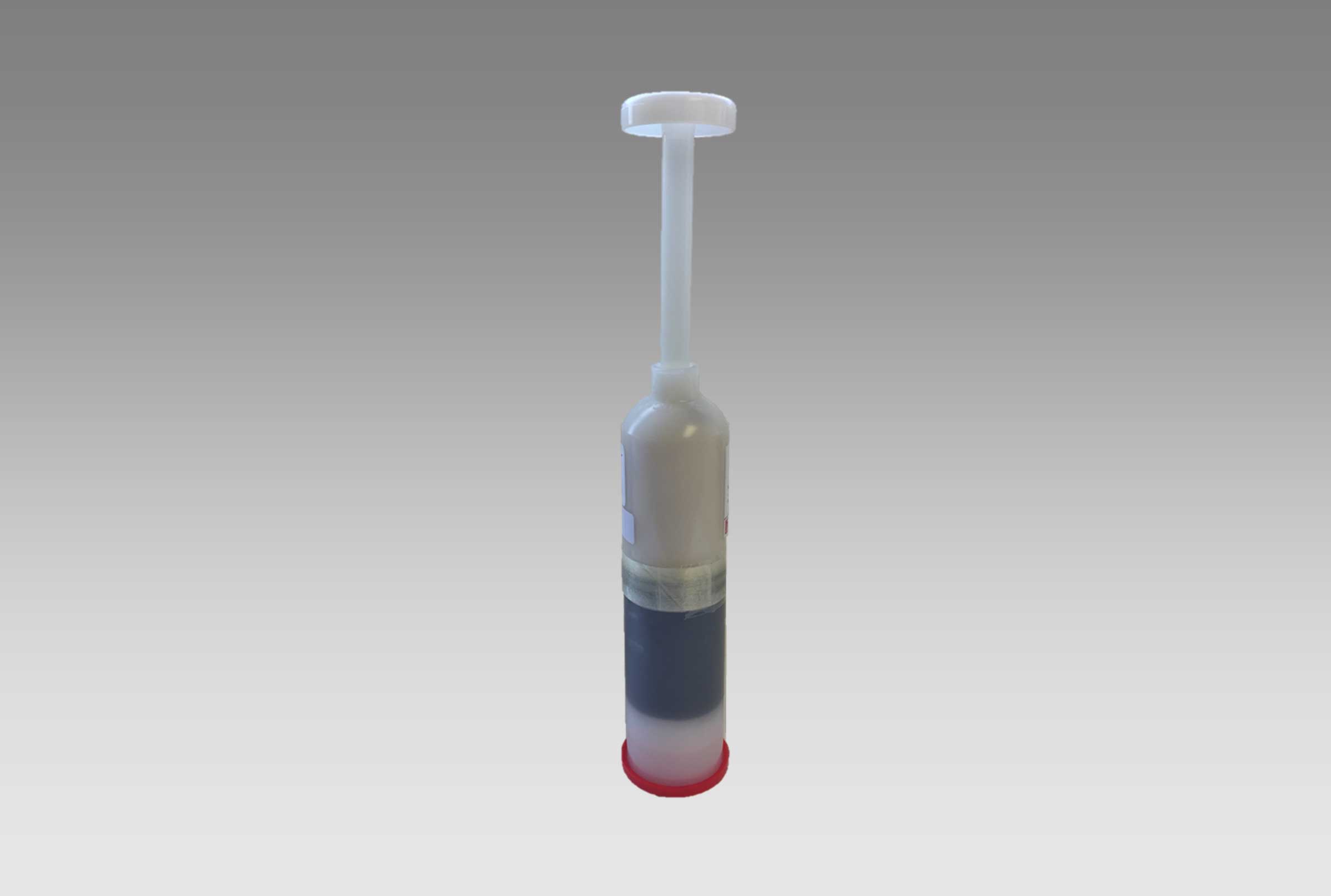

6 OZ Kit
6 OZ Kit


WARRANTY INFORMATION

The warranty period provided by Polymer systems Technology ltd (hereinafter “PST”) is from the date of shipment when stored below 40°C in original unopened containers. Unless PST provides a specific written warranty of fitness for a particular use, PST’s sole warranty is that the product will meet PST’s then current specification. PST specifically disclaims all other expressed or implied warranties, including, but not limited to, warranties of merchantability and fitness for use. The exclusive remedy and PST’s sole liability for Packaging Warranty 50 mL Side-by-Side Kit 200 mL Side-by-Side Kit 400 ml Side-by-Side Kit 2 Pint Kit (910 g) 2 Gallon Kit (7.28 kg) 10 Gallon Kit (36.4 kg), Inc. All rights reserved. Trademarks are owned by PST or its affiliates unless otherwise noted. breach of warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted. PST expressly disclaims any liability for incidental or consequential damages.



WARNINGS ABOUT PRODUCT SAFETY

PST believes, to the best of its knowledge, that the information and data contained herein are accurate and reliable. The user is responsible to determine the material’s suitability and safety of use. NuSil Technology cannot know each application’s specific requirements and hereby notifies the user that it has not tested or determined this material’s suitability or safety for use in any application. The user is responsible to adequately test and determine the safety and suitability for their application and NuSil Technology makes no warranty concerning fitness for any use or purpose. PST has completed no testing to establish safety of use in any medical application. PST has tested this material only to determine if the product meets the applicable specifications. (Please contact PST for assistance and recommendations when establishing specifications.) When considering the use of PST products in a particular application, review the latest Material Safety Data Sheet and contact PST with any questions about product safety information. Do not use any chemical in a food, drug, cosmetic, or medical application or process until having determined the safety and legality of the use. The user is responsible to meet the requirements of the U.S. Food and Drug Administration (FDA) and any other regulatory agencies. Before handling any other materials mentioned in the text, the user is advised to obtain available product safety information and take the necessary steps to ensure safety of use.



PATENT / INTELLECTUAL PROPERTY WARNING

PST disclaims any expressed or implied warranty against the infringement of any domestic or international patent/intellectual property right. PST does not warrant the use or sale of the products described herein will not infringe the claims of any domestic or international patent/intellectual property right covering the product itself, its use in combination with other products, or its use in the operation of any process.
