Premium Care:

MED-6020

Platinum Cure

Optically Clear Low Consistency Silicone Elastomer

DESCRIPTION
  • Two-part, pourable, optically clear, silicone elastomer
  • Cures with heat via addition-cure chemistry
  • 1:1 Mix Ratio (Part A: Part B)
APPLICATION
  • For use in potting, encapsulating, coating, and injection or transfer molding applications
  • As an adhesive or encapsulant for applications requiring optical clarity
PROPERTIES
Typical PropertiesAverage Result
Uncured:
AppearanceTransparent
Viscosity, Part A76,000 cP (76,000 mPas)
Viscosity, Part B54,000 cP (54,000 mPas)
Work Time4 hours
Refractive Index1.43
Cured: 30 minutes at 150°C (302°F)
Durometer, Type A40
Tensile Strength680 psi (4.7 MPa)
Elongation215%
Tear Strength40 ppi (7.5 kN/m)
Tissue Culture (Cytotoxicity Testing)Pass
Elemental Analysis of Trace MetalsPass

These properties tested on a lot-to-lot basis. Please contact NuSil Technology for assistance and recommendations in establishing particular specifications.

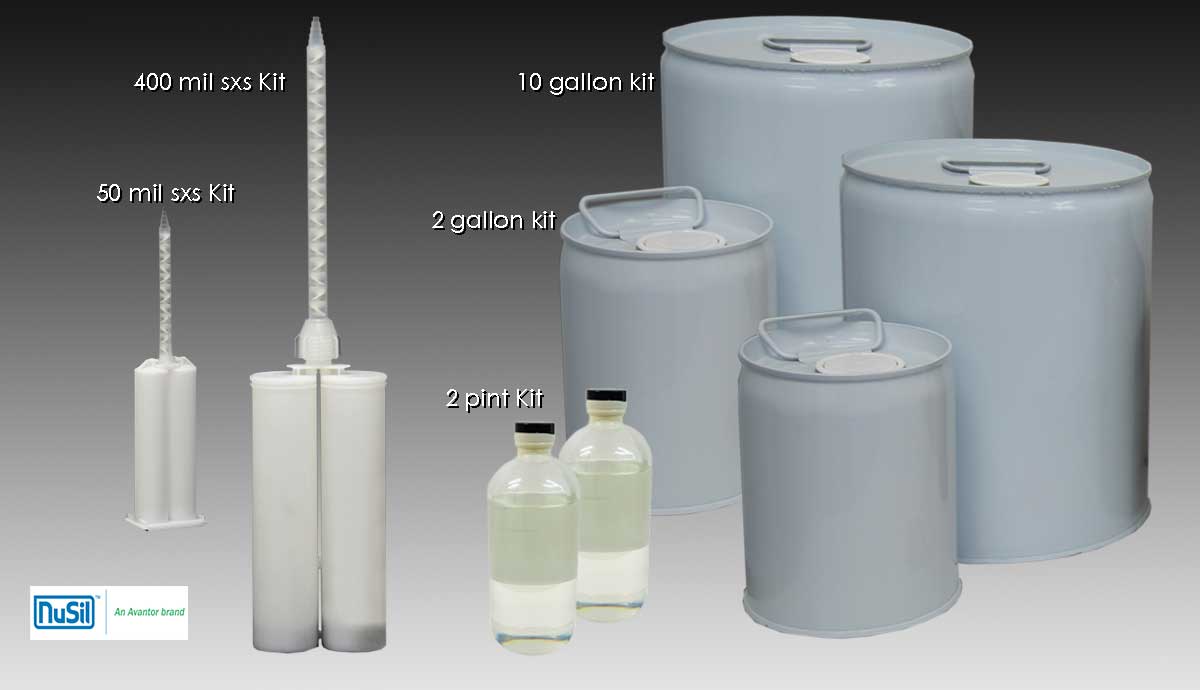

Packaging

50 mL Side-by-Side Kit
400 mL Side-by-Side Kit
2 Pint Kit (910 g)
2 Gallon Kit (7.28 kg)
10 Gallon Kit (36.4 kg)

Warranty

12 Months
