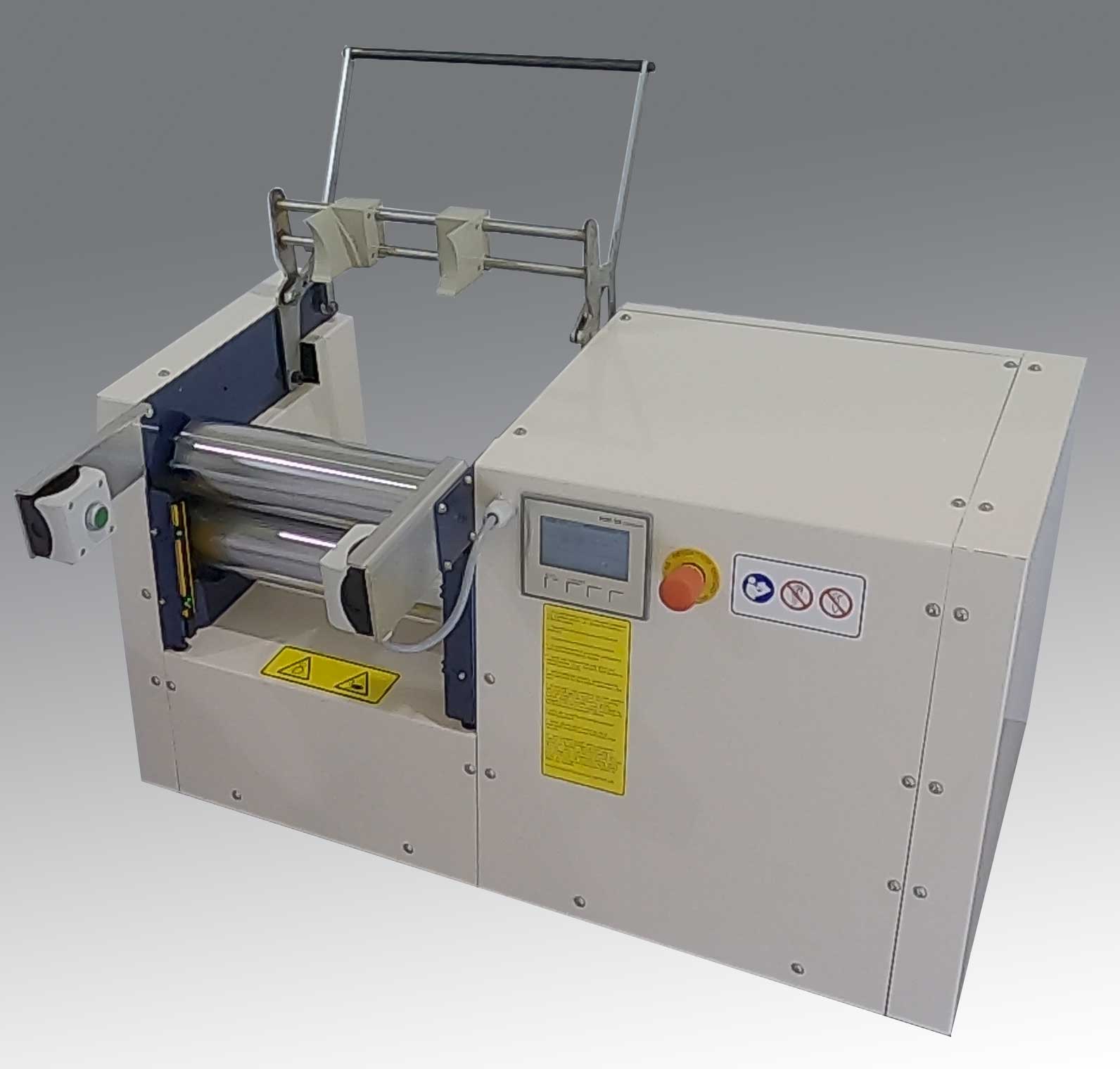

Bench Top Electric Roll Mill PST‑MW-10 Custom

CE Certification Logo СЄ Certification

Full Access Bench Top Electric Roll Mills - СЄ Certification
The new full access bench top electric rollers are available with a single motor (PST-MW-10) and dual motor options (PST-MW-10 C). Each of the two machines have an electronic measuring gauge and improved bottom roll drop system making the machine easier to use. The dual motor version has the ability of changing the roll speed independently for upper and lower roll.

Technical Details
Size of machine:
Width = 1050 mm
Depth = 500 mm
Height = 450 mm
Machine Weight: 220kg
Electric Power Supply:
230 Volt, 1 Ph and earth (50/60 Hz)

Standard Equipment
Both machines have:
Chromed Steel Rollers
Electronic measuring gauge
Improved bottom roll drop system (making it easier to use)

Roller details PST-MW-10
Diameter = 10cm

Roller
Width = 40 cm
Revolutions = 2 to 15 rpm
Gap thickness:
Between 200 microns to 10 mm

Bench Top - Electric Roll Mill PST‑MW-10-C

Full Access Bench Top Electric Roll Mills - CE Certification
For Milling and Calendering 2 Part Silicone
For suitable products (see VersaSil product range)

VersaSil³

Medical Silicones
Medical Silicones

PDF Brochure

Download - Roller Listing March 2022.pdf
Download - Roller Listing May 2022

Detail 1

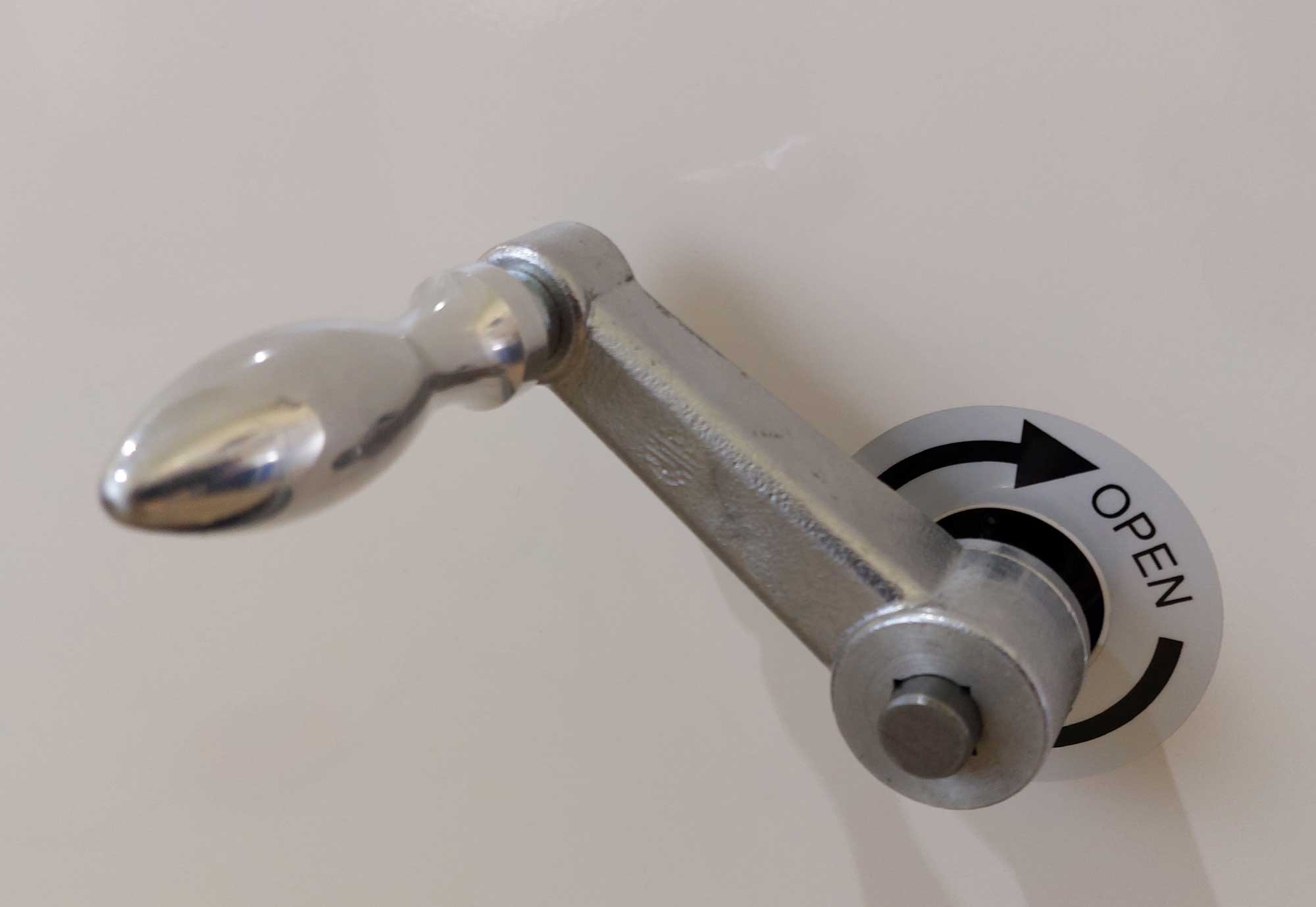

Roller height adjustment
Roller height adjustment

Detail 2

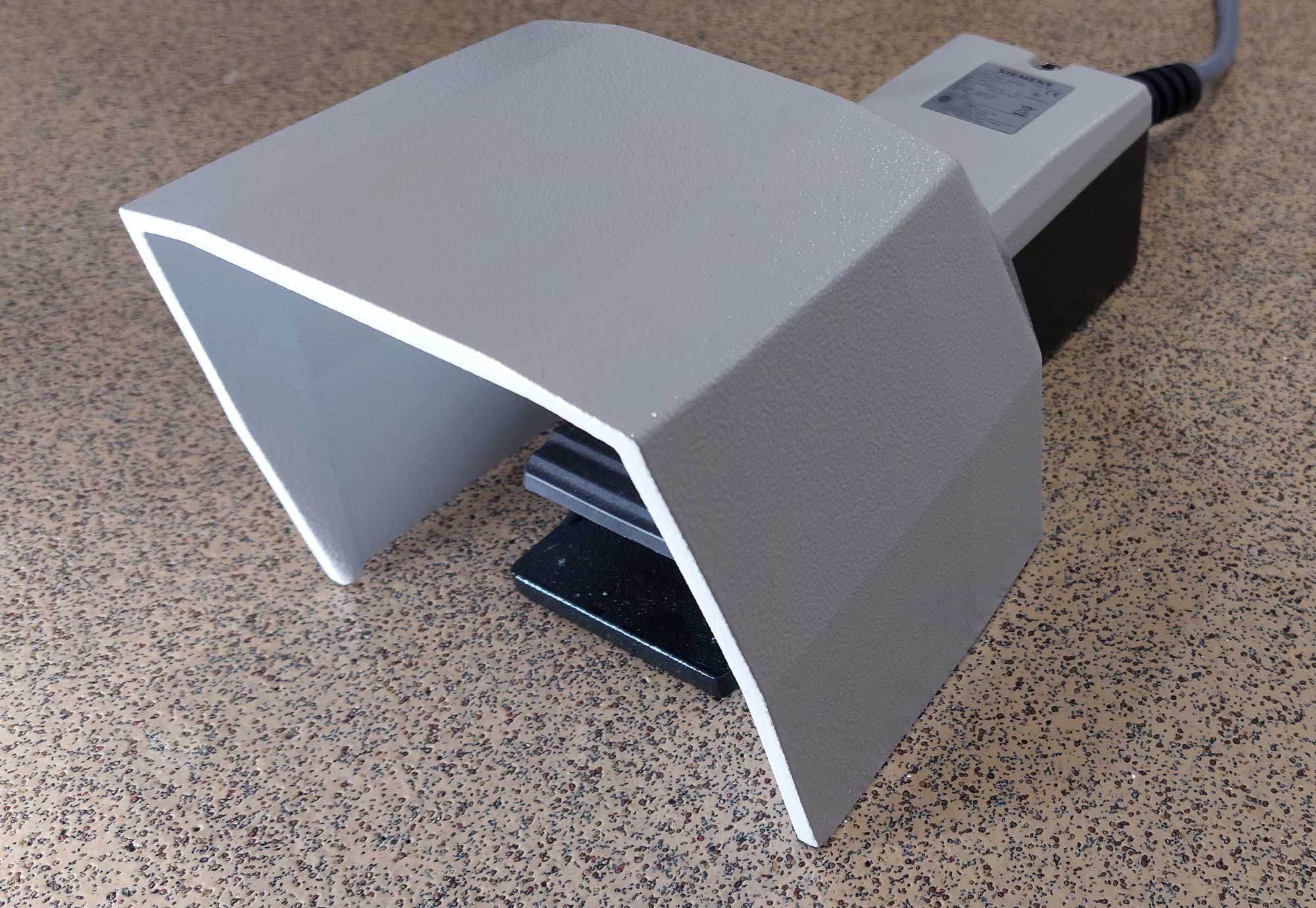

Foot pedal
Foot pedal

Detail 3

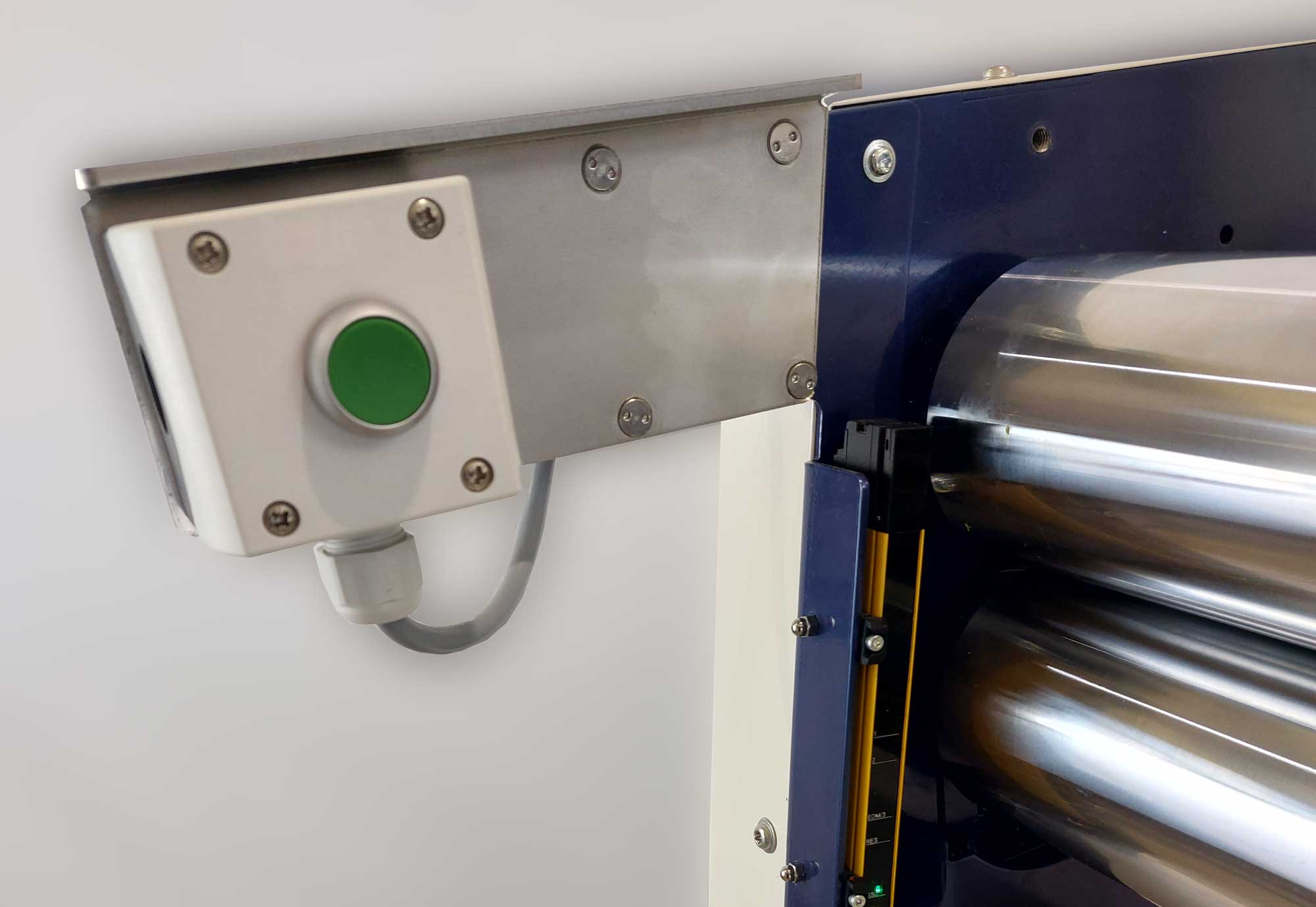

Left Jog Switch
Left Jog Switch

Detail 4

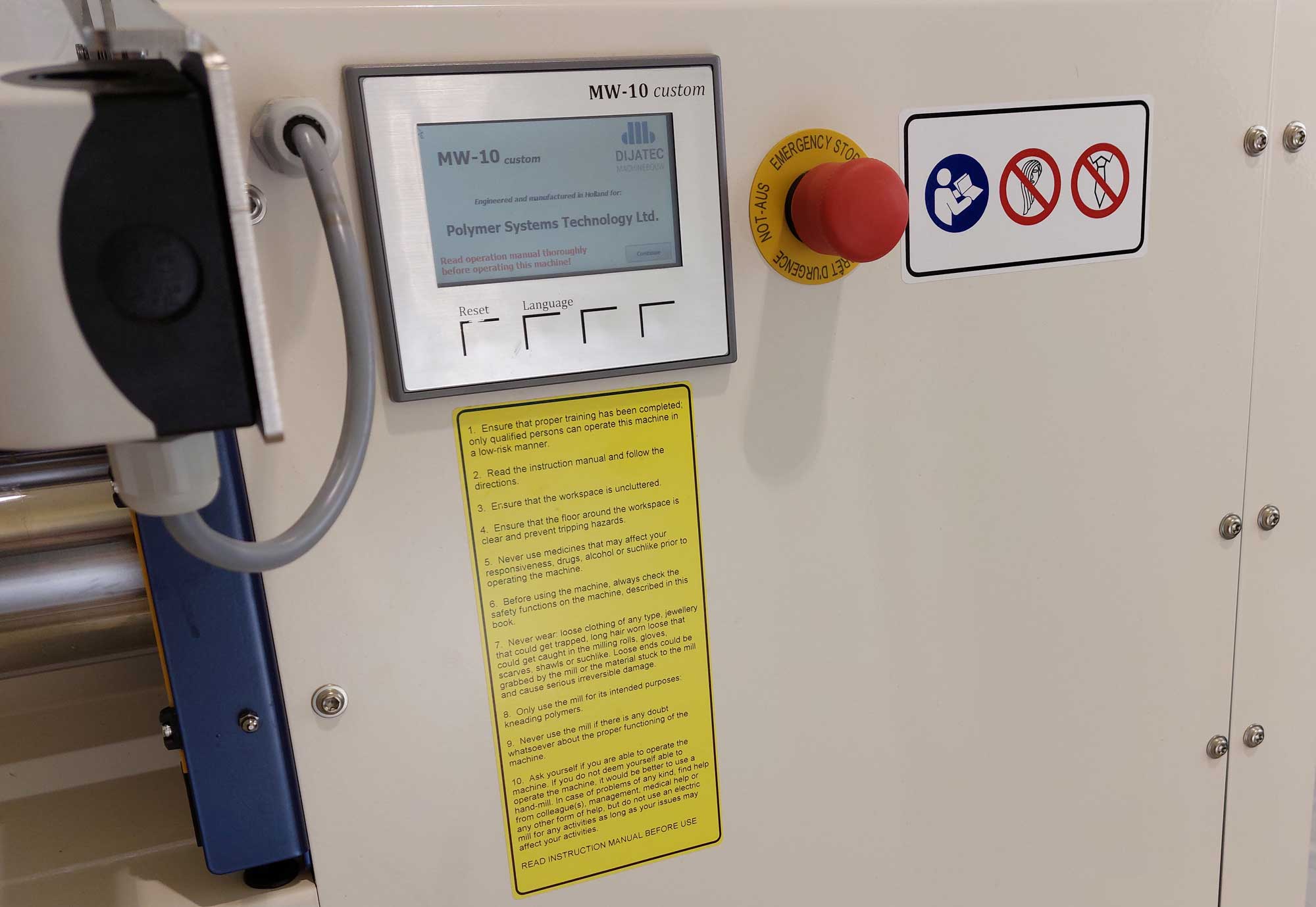

Control Panel - Emergency Stop Button - Electric Roll Mill
Control Panel & Emergency Stop Button

PST-MW10-C Video

PST-MW10-C Demonstration Video
Demonstration Video - with captions

Light Curtain Video

PST-MW10-C Demonstration Video
Demonstration Video - with captions
