Hand operated two roll mill PST‑MW‑07

Hand operated - lightweight

This mechanical hand-operated two-roll mill combines the durability of solid rolls while maintaining the lightweight design, ensuring both robustness and ease of use. Despite the solid construction, the hand roller remains remarkably lightweight, offering smooth and effortless operation for efficient processing.

Ease and flexibility of use
Thickness adjustment is done by simply moving a handle. No locking is required for maitaining the preset thickness.

For enhanced user safety, a protective guard has been installed around the gears, preventing accidental contact and ensuring safe operation.

Cleaning is made easy because many parts are made of stainless steel.

Control

The integration of gears on one side of each roll ensures seamless operation.

This machine is well suited to mix small quantities of HCR slicones and to create a layer thickness ranging from 0,1 to 5 mm.

The hand crank can be mounted on both rolls, allowing for multidirectional operation. The crank can be elongated, so you can use your muscle power more efficiently.



Technical specifications

  • Roller diameter: 80 mm
  • Roller width: 250 mm
  • Roller material: chromed steel
  • Rolling gap min/max: 0,1 / 5 mm
  • Machine weight: 32 kg
  • D x W x H: 400 x 140 x 337 mm

Colours

  • Frame: stainless steel (uncoated)
  • GAP adjusting lever: stainless steel (uncoated)

Delivery includes

  • Machine
  • Instruction manual

Blending Materials

  • Medical Silicones
  • Silicones for Space
  • Defence Industrial Silicones

VersaSil³ Medical HCR’s

Medical Silicones
Medical Grade Silicone Rubbers – 3 Part System

Medical Class VI HCR’s

Medical Grade Silicone Rubbers – 2 Part System
Medical Grade Silicone Rubbers – 2 Part System

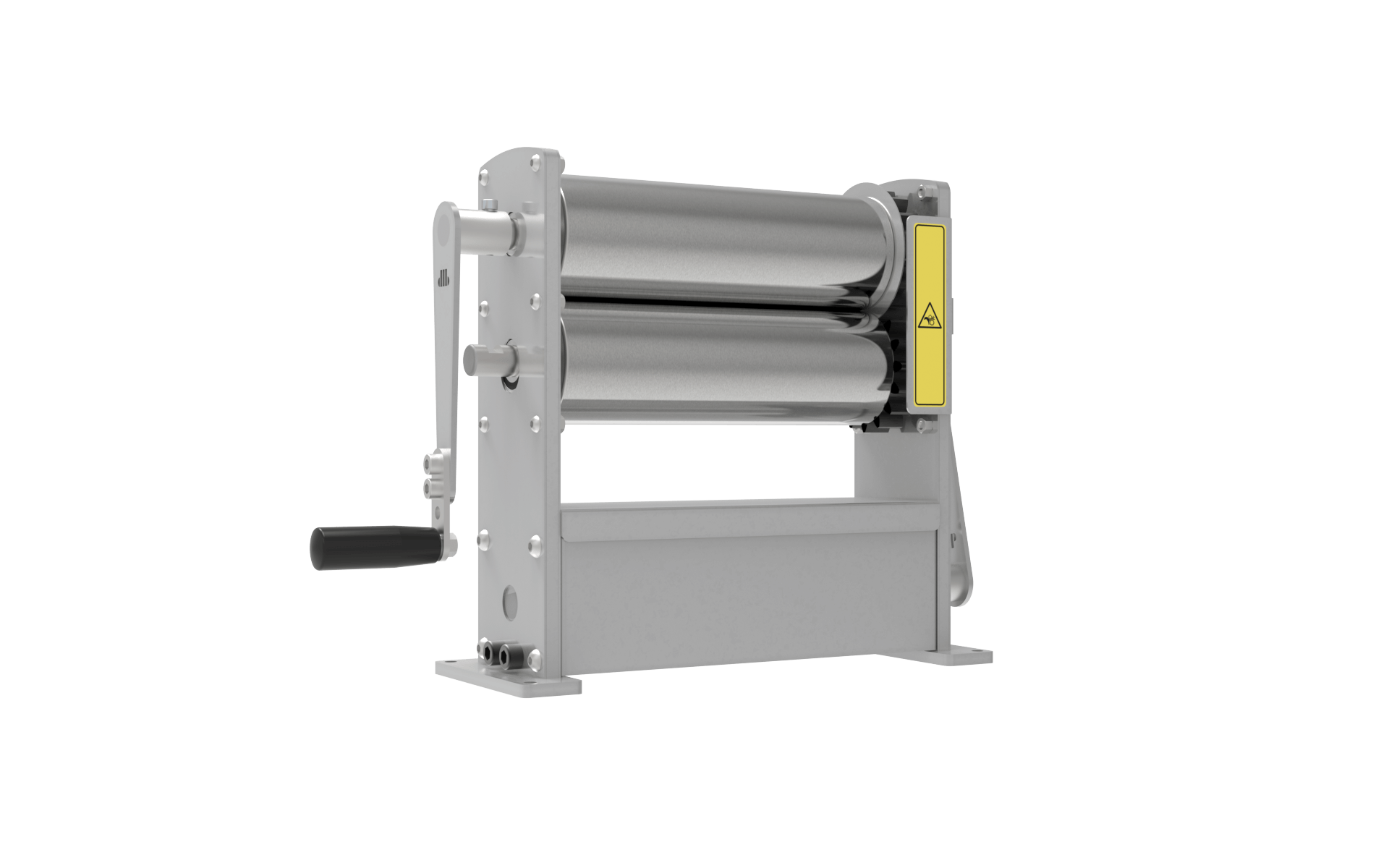

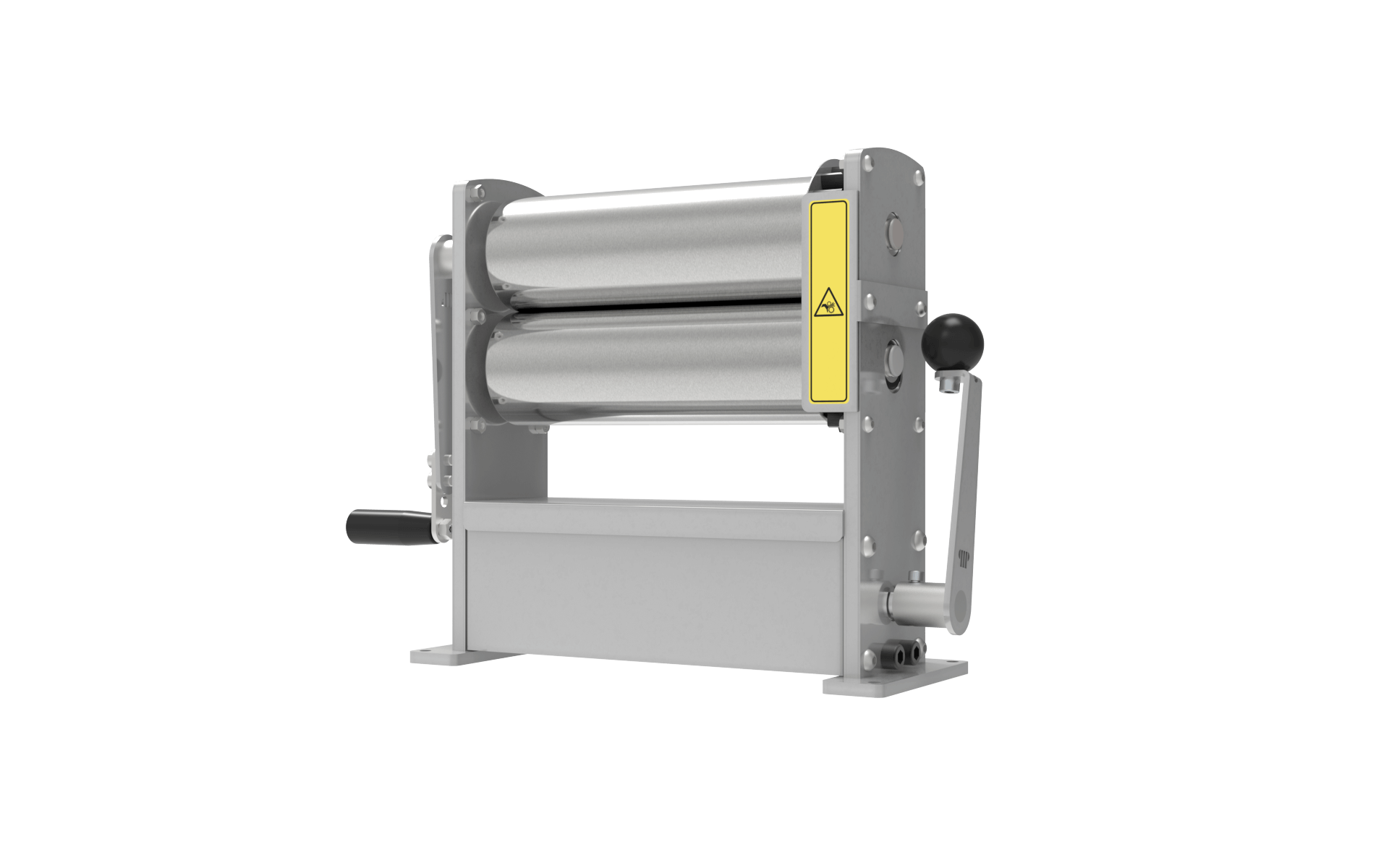

PST‑MW‑07
