Two Roll Mill PST‑MW‑15

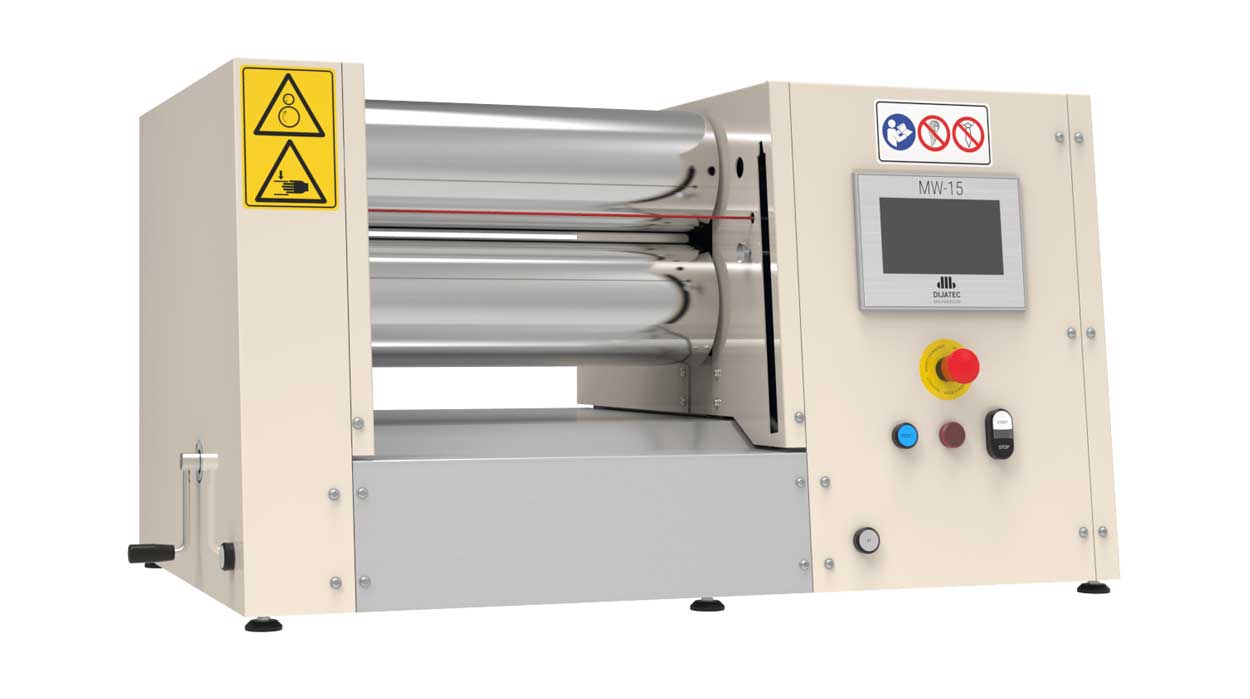

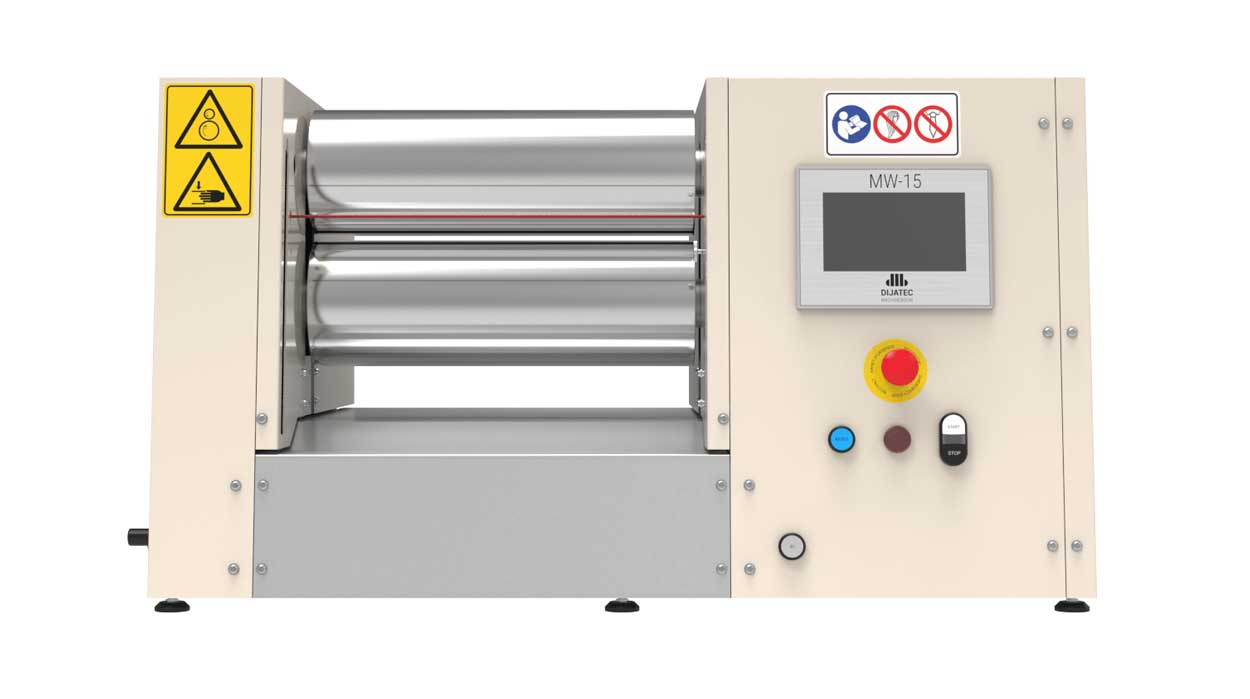

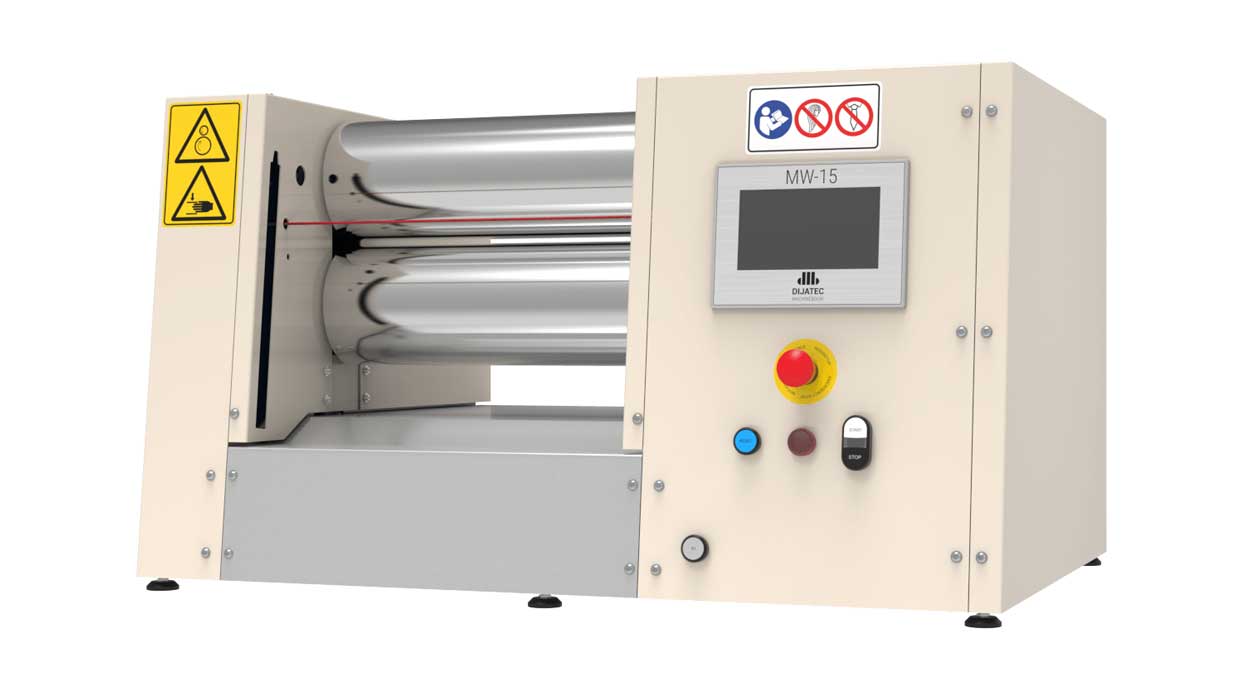

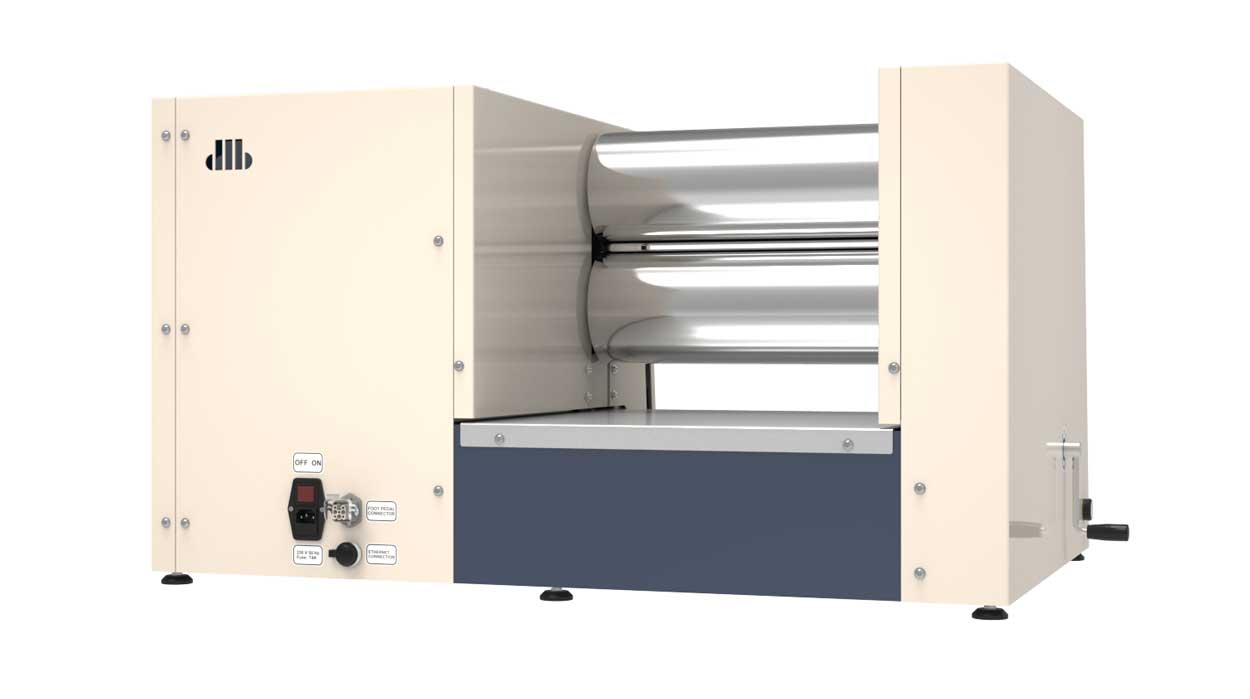

Electric Operated Vertical Roll Mill PST‑MW‑15
Bench top two roll mill for professional use
Introducing our large electric bench-top machine, meticulously designed for professional users who demand precision and reliability in their material processing. This powerful electric silicone roller has a mixing capacity of up to 750 grams (50 Shore A), providing a versatile solution for a wide range of materials.
Safety
Ensuring optimal safety through the triple-guarded roller opening, this machine is equipped with dual light curtain system and emergency stop cable. This robust combination not only guarantees maximum safety but also ensures uninterrupted and efficient operation, minimizing potential risks.
Technical specifications
- Roller diameter: 150 mm
- Roller width: 400 mm
- Roller material: chromed steel
- Rolling gap
min/max: 0,1 / 17 mm - Machine weight: 275 kg
- Measurements:
D x W x H:
700 x 1006* x 593 mm
* Without handle
Electrical specifications
- 230 Volt, 1 Ph. + N + PE
- Power consumption: 1.7 kW
- Nominal current:
7,5 A (@ 230 V)
Colours
- Frame: RAL 5026
(dark blue metallic) - Body panels: RAL 9001 (cream white)
Delivery includes
- Machine
- Foot pedal
- Lifting hook
- Instruction manual
- Calibrating tool
Safety features
- Roller opening guarding with dual light curtain
- Emergency stop cable
- Emergency stop button
- Reverse operation via two hand control
- Special designed cleaning program
- Machine running state via LED
Other features
- HMI control panel for easy operation
- Digital milling thickness gaugeg
- VPN connection for remote support
- Single or dual motor version
Mixing capacity
- Up to 750 grams of
50 Shore
A material
Blending Materials
- Medical Silicones
- Silicones for Space
- Defence Industrial Silicones
VersaSil³ Medical HCR’s
Medical Class VI HCR’s
