Two Roll Mill PST‑MW‑20

Large standalone electric silicone roller PST‑MW‑20

Meet our large standalone electric silicone roller, designed carefully for professionals who want precision and reliability in processing materials. This powerful mill can mix between 1kg – 2kg depending on material durometer (approx. 2kg for 14 – 30 Shore A, 1kg for materials around 80 Shore A) making it versatile for a wide range of materials.

Safety

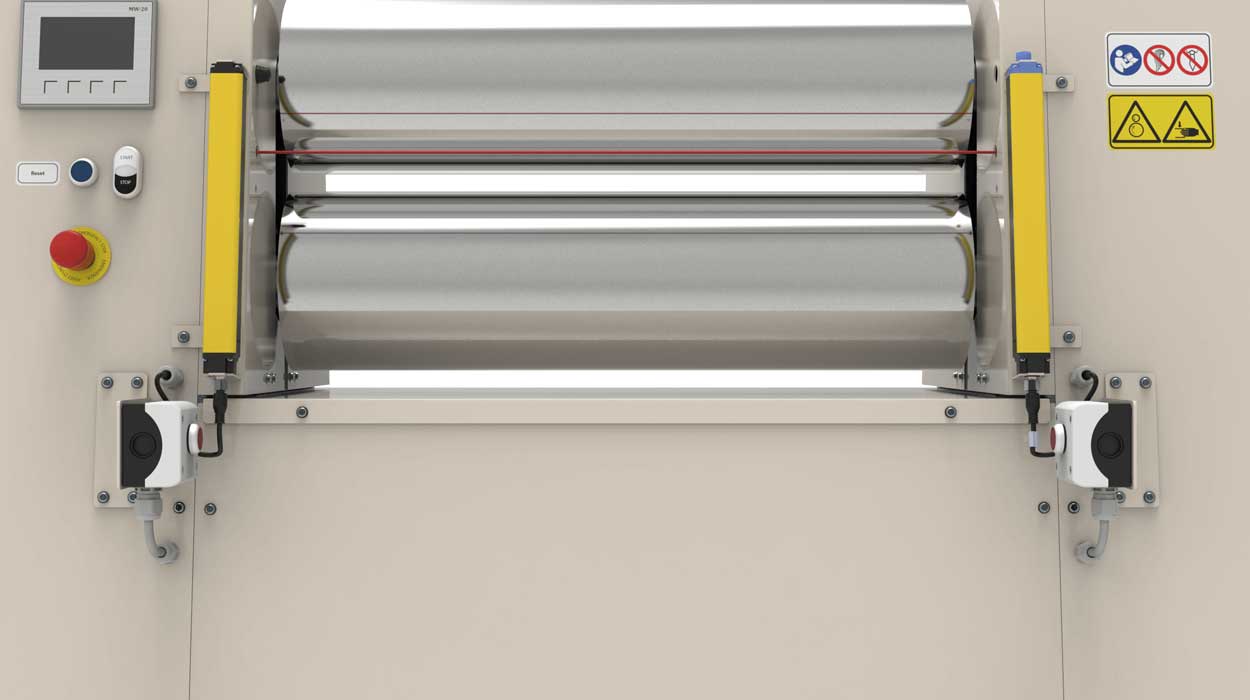

Ensuring top-notch safety with a triple-guarded roller opening, this machine comes equipped with dual light curtains and an emergency stop cable. Combining all of these not only ensures maximum safety but also guarantees uninterrupted and efficient operation, minimizing potential risks.



Technical specifications

  • Roller diameter: 200mm
  • Roller width: 750mm
  • Roller material:chromed steel
  • Rolling gap min/max: 0,1 / 25mm
  • Machine weight: 360 kg
    Measurements:
    D x W x H:
    745 x 1328*x 1235** mm
    * Excluding handle
    ** Including castors

Electrical specifications

  • 230 Volt, 1 Ph. + N + PE
  • Power consumption: 1,7 kW
  • Nominal current: 7,5 A (@ 230 V)

Colours

  • Frame: RAL 5026
    (dark blue metallic)
  • Body panels: RAL 9001 (cream white)

Delivery includes

  • Machine
  • Foot pedal
  • Instruction manual
  • Calibrating tool
  • Stainless steel collection tray

Safety features

  • Combined roller opening guarding by using dual light curtains and emergency stop cable
  • Emergency stop button
  • Special designed cleaning program
  • Reverse operation via two hand control

Other features

  • HMI control panel for easy operation
  • Digital milling thickness gauge

Mixing capacity

  • 1kg – 2kg
    Depending on material durometer
    (approx. 2kg for 14 – 30 Shore A,
    1kg for materials around 80 Shore A)

Blending Materials

  • Medical Silicones
  • Silicones for Space
  • Defence Industrial Silicones

VersaSil³ Medical HCR’s

Medical Silicones
Medical Grade Silicone Rubbers – 3 Part System

Medical Class VI HCR’s

Medical Grade Silicone Rubbers – 2 Part System
Medical Grade Silicone Rubbers – 2 Part System

PST‑MW‑20

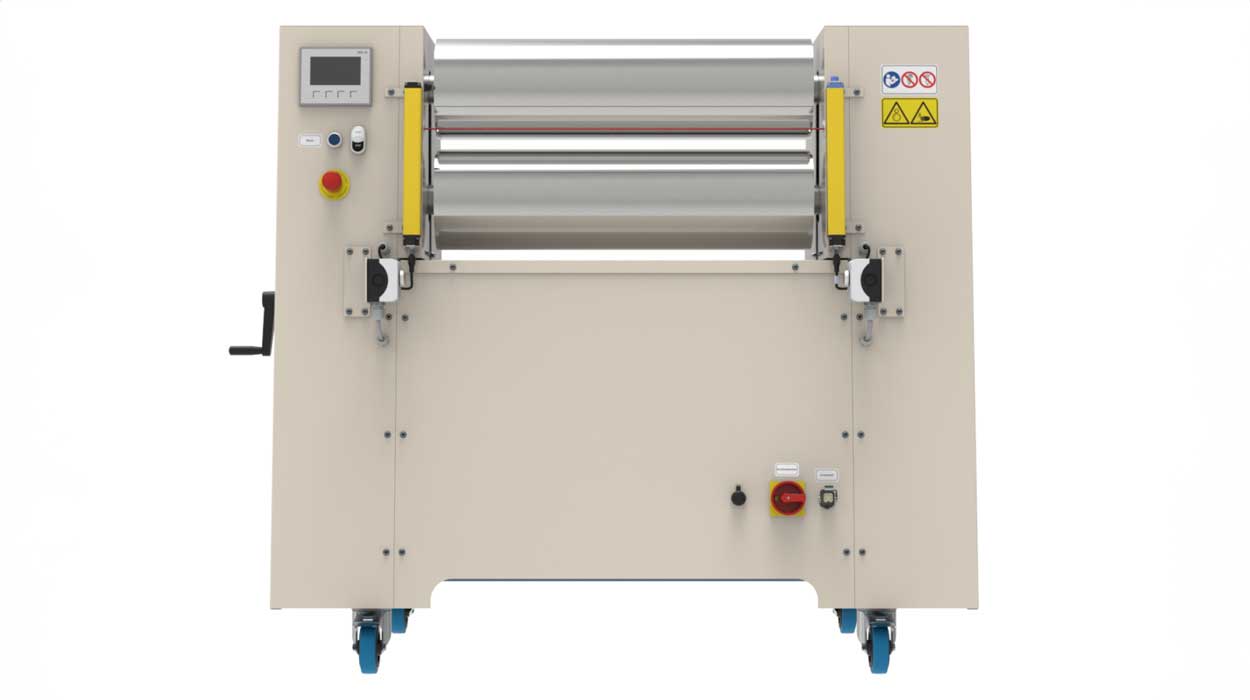

Front View
Electric Roll Mill
