Lightguard for Safety
Two Roll Mill with Lightguard for Ultimate Safety

Polymer Systems
Technology Limited

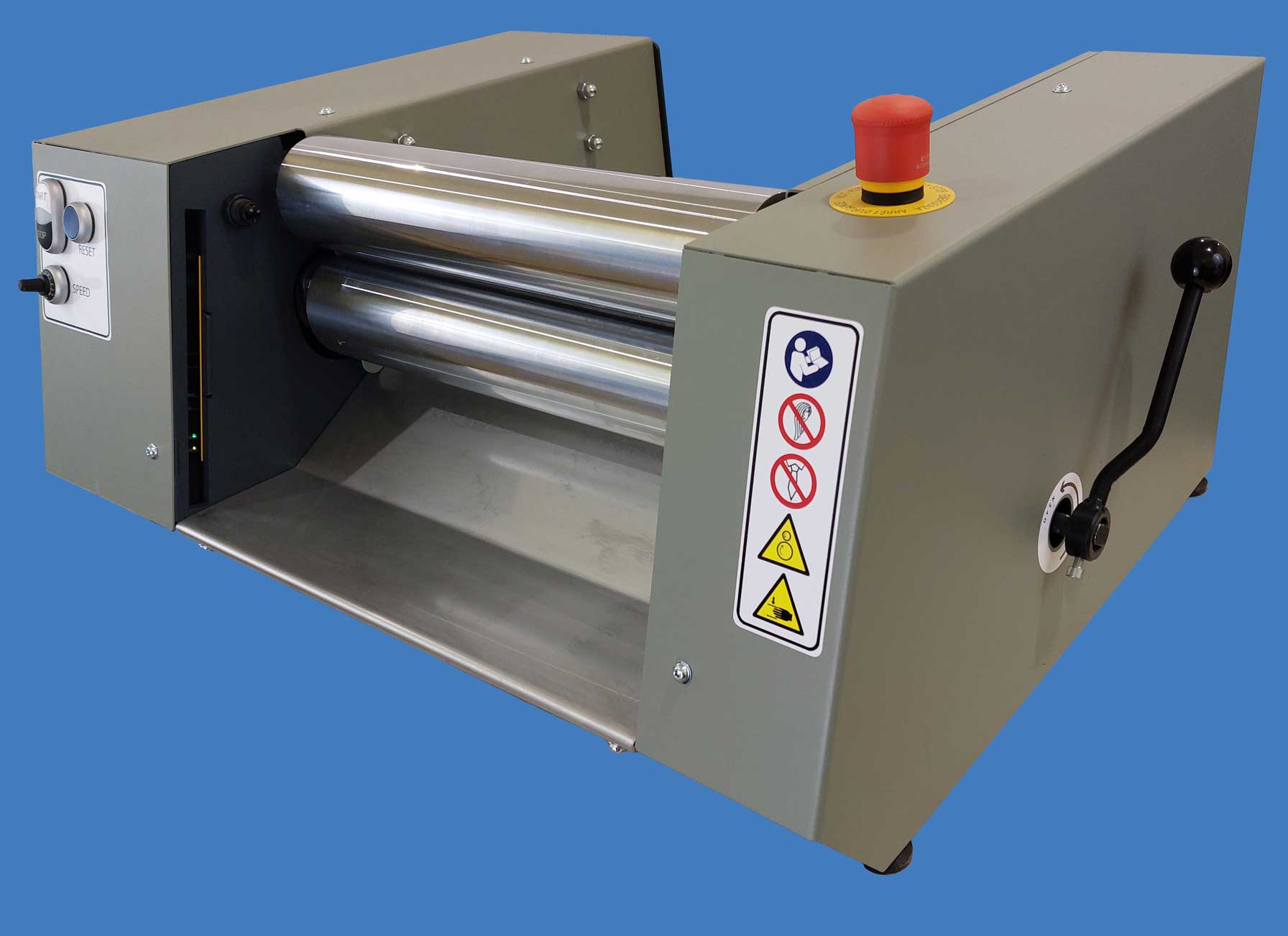

Bench Top Standard Vertical Electric Two Roll Mill
PST‑MW‑08 & PST‑MW‑10

CE Certification Logo CE Certification


Safety with Lightguard
PST-MW-08 & PST-MW-10 Are low cost 2 roll mills with the latest technology utilising the light curtains, offering more access without compromise of the safety. Available in two roller sizes, 8 cm & 10 cm.

Specification:

Machine dimensions
Height  = 32 cm
Width = 71 cm
Length = 56 cm
Machine Weight = (approx. 102 kg)

Roller details PST-MW-08
Diameter  = 8 cm

Roller details PST-MW-10
Diameter  = 10cm

Roller
Width = 40 cm
Revolutions = 2 to 15 rpm
Gap thickness:
Between 200 microns to 10 mm

Electric Power
Voltage  = 230 volts
Current = 1.5 amps
Frequency  = 50 Hz
Single phase

Bench Top Standard Vertical Electric Two Roll Mill - with Lightguard

Pro Desk-top Electric Roll Mill
For Milling and Calendering 2 Part Silicone.
For suitable products see VersaSil product range.

VersaSil³

Medical Silicones
Medical Silicones

PDF Brochure

Download - Roller Listing March 2023.pdf
Download - Roller Listing May 2023

Demonstration Video

Small desk-top Electric Roll Mill video
Bench Top Two Roll Mill Video

Jog & Safety

Foot control video and saftey stop - reset
Jog - Emergency Stop - Rear Reset

Detail 1

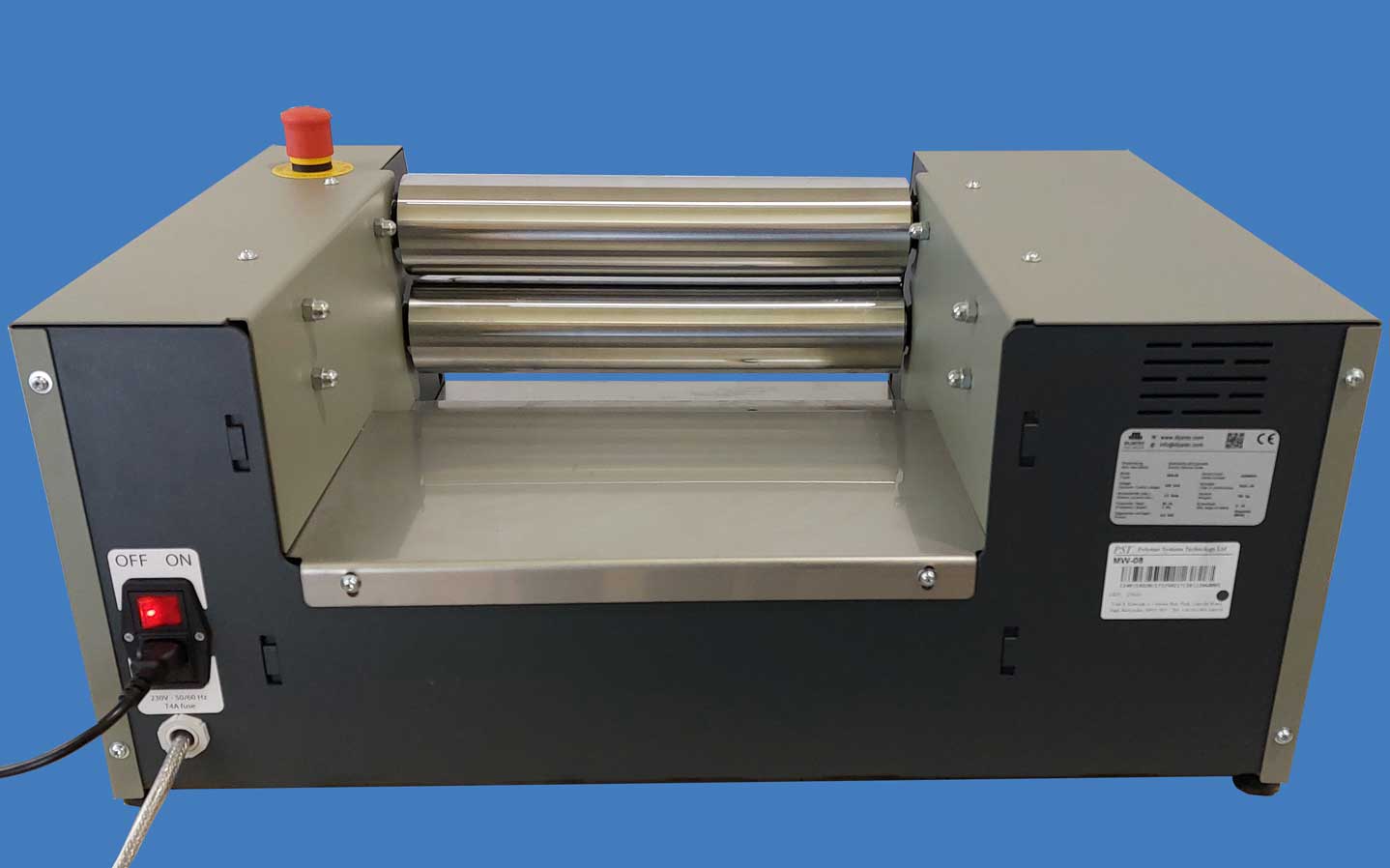

Rear View - Cable Conections
Rear View showing Cable Connections

Lightguard

Start Up & Safety Video
Stop Start Safety Video

Detail 2

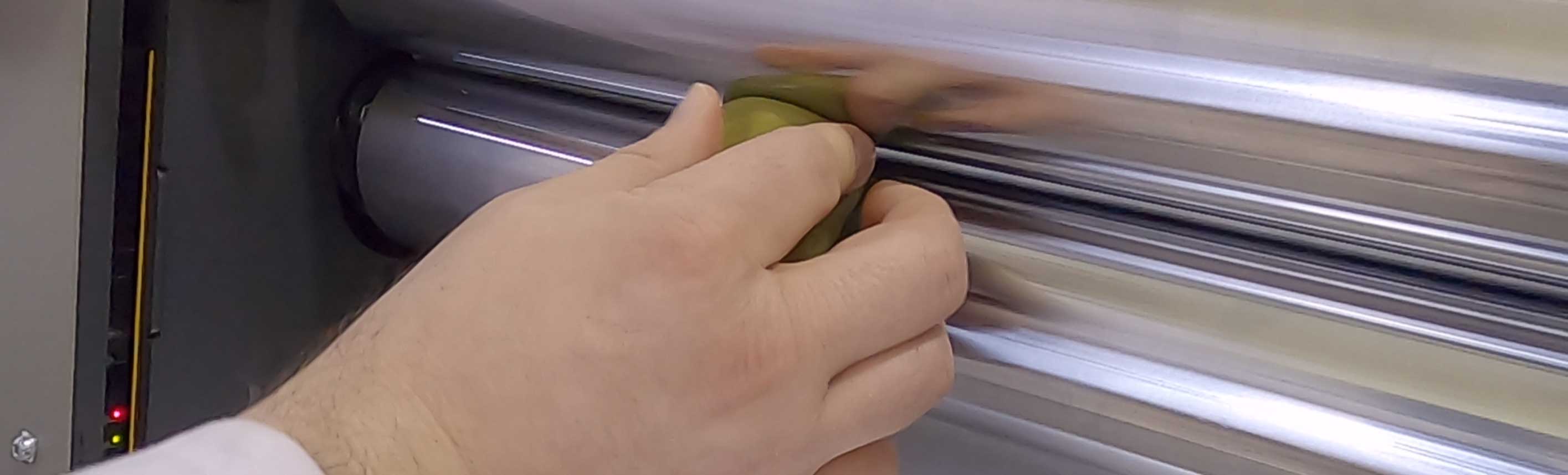

Adjusting Rollers
Adjusting Rollers

Usage Video

Removing Sheet
Usage Video
