Polymer Systems
Technology Limited

Life Science

Implant Line

MED4-4420

Low Consistency Elastomers

Low Consistency Silicone Elastomer

DESCRIPTION
  • A two-part, low viscosity, translucent silicone
  • Cures with heat via addition-cure chemistry
  • 1:1 Mix Ratio (Part A: Part B)
APPLICATION
  • For use in potting, encapsulating, coating, and injection or transfer molding applications
Additional information for Fast-Cure Silicones for Long-Term Implants: Fast-Cure Silicones for Long-Term Implants PDF Healthcare PDF tear sheet
PROPERTIES
Typical PropertiesAverage Result
Uncured:
AppearanceTranslucent
Viscosity, Part A27,000 cP (27,000 mPas)
Viscosity, Part B19,500 cP (19,500 mPas)
Work Time35 minutes
Cured: 15 minutes at 150°C (302°F)
Durometer, Type A17
Tensile Strength700 psi (4.8 MPa)
Elongation600%
Tear Strength35 ppi (6.2 kN/m)
Tissue Culture (Cytotoxicity Testing)Pass
Elemental Analysis of Trace MetalsPass

These properties tested on a lot-to-lot basis. Please contact NuSil Technology for assistance and recommendations in establishing particular specifications.

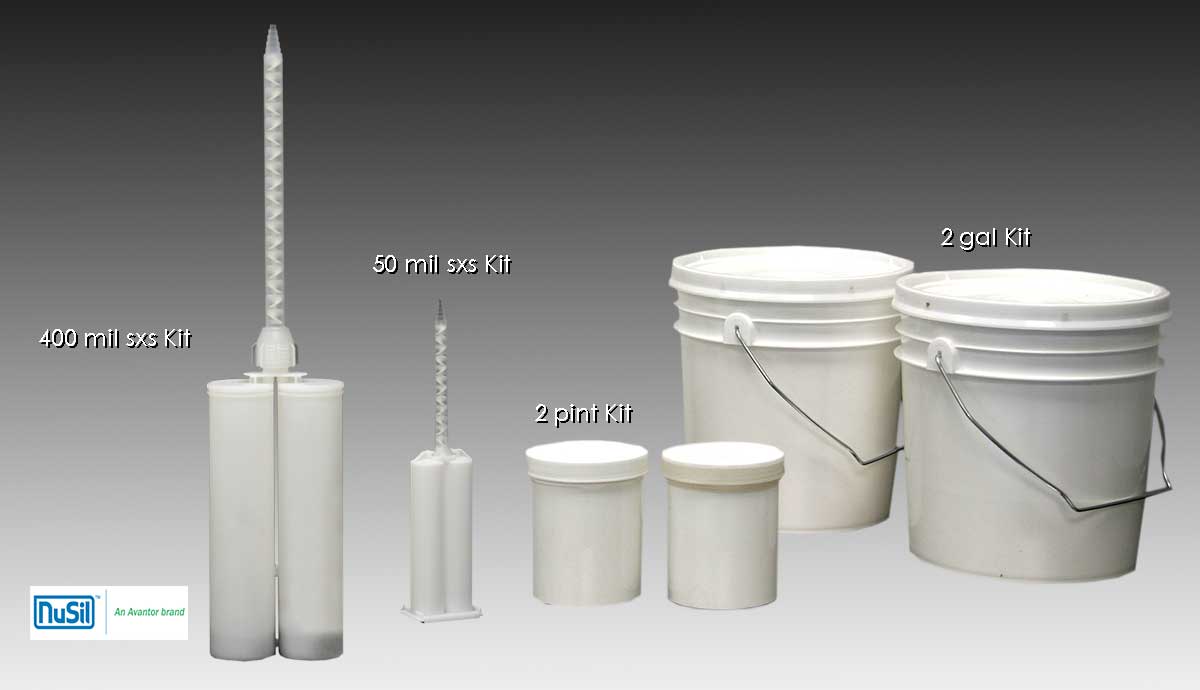

Packaging

50 mL Side-by-Side Kit
400 mL Side-by-Side Kit
2 Pint Kit (910 g)
2 Gallon Kit (7.28 kg)

Warranty

12 Months

Product Profile - Full Details Product Profile
Material Safety Data Sheet EU EN Material Safety Data Sheet
Example packaging
Example packaging
