Standard Silicone General Purpose (R‑****)


R- General Purpose

No outgassing or ion criteria
Successful performance history
Multiple Applications Heritage

R- Standard Silicone - Product listing

R-2615 » Optically Clear Potting and Encapsulating Silicone Elastomer

PROPERTIES
Typical PropertiesAverage ResultMetric Conv.
Uncured:
AppearanceTransparent-
Viscosity, Part A6,000 cP6,000 mPas
Viscosity, Part B90 cP90 mPas
Viscosity, Part A and B Mixed 5,300 cP5,300 mPas
Work Time4 hours-
Cured : 15 min at 150°C (302°F)
Specific Gravity1.03-
Durometer, Type A50-
Tensile Strength1,300 psi9.0 MPa
Elongation100%-
Tear Strength20 ppi3.5 kN/m
Refractive Index1.41-
Dielectric Strength500 volts/mil19.7 kV/mm
Volume Resistivity1 x 1015-

Recommended Primer CF1-135

Note: Some bonding applications may require the use of a primer.


R2-6755 » Optically Clear Tough Silicone Elastomer

PROPERTIES
Typical PropertiesAverage ResultMetric Conv.
Uncured:
AppearanceTransparent-
Viscosity, Part A48,500 cP48,500 mPas
Viscosity, Part B40,000 cP40,000 mPas
Viscosity, Part C1,350 cP1,350 mPas
Refractive Index1.46-
Volatility0.8%-
Tack-Free Time1 hour-
Cured : 30 min at 150°C (302°F)
Specific Gravity1.14-
Durometer, Type A20-
Tensile Strength550 psi3.79 Mpa
Elongation325%-
Stress at 100% strain70 psi0.48 Mpa
Tear Strength25 ppi4.41 kN/m

R21-2615 » Optically Clear High Durometer Silicone Elastomer

PROPERTIES
Typical PropertiesAverage Result
Uncured:
AppearanceTransparent
Viscosity, Part A30,000 cP (30,000 mPas)
Viscosity, Part B20,000 cP (20,000 mPas)
Work Time2 hours
Cured: 2 hours at 50°C (122°F)
Specific Gravity1.07
Durometer, Type A75
Tensile Strength1,200 psi (8.3 MPa)
Elongation65%
Tear Strength35 ppi (6.2 kN/m)

Properties tested on a lot-to-lot basis. Do not use the properties shown in this technical profile as a basis for preparing specifications. Please contact NuSil Technology for assistance and recommendations in establishing particular specifications.

Recommended Primer CF1-135

Note: Some bonding applications may require the use of a primer.


WARRANTY INFORMATION

The warranty period provided by Polymer systems Technology ltd (hereinafter “PST”) is 12 months from the date of shipment when stored below 40°C in original unopened containers. Unless PST provides a specific written warranty of fitness for a particular use, PST’s sole warranty is that the product will meet PST’s then current specification. PST specifically disclaims all other expressed or implied warranties, including, but not limited to, warranties of merchantability and fitness for use. The exclusive remedy and PST’s sole liability for Packaging Warranty 50 mL Side-by-Side Kit 12 Months 200 mL Side-by-Side Kit 400 ml Side-by-Side Kit 2 Pint Kit (910 g) 2 Gallon Kit (7.28 kg) 10 Gallon Kit (36.4 kg), Inc. All rights reserved. Trademarks are owned by PST or its affiliates unless otherwise noted. breach of warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted. PST expressly disclaims any liability for incidental or consequential damages.



WARNINGS ABOUT PRODUCT SAFETY

PST believes, to the best of its knowledge, that the information and data contained herein are accurate and reliable. The user is responsible to determine the material’s suitability and safety of use. NuSil Technology cannot know each application’s specific requirements and hereby notifies the user that it has not tested or determined this material’s suitability or safety for use in any application. The user is responsible to adequately test and determine the safety and suitability for their application and NuSil Technology makes no warranty concerning fitness for any use or purpose. PST has completed no testing to establish safety of use in any medical application. PST has tested this material only to determine if the product meets the applicable specifications. (Please contact PST for assistance and recommendations when establishing specifications.) When considering the use of PST products in a particular application, review the latest Material Safety Data Sheet and contact PST with any questions about product safety information. Do not use any chemical in a food, drug, cosmetic, or medical application or process until having determined the safety and legality of the use. The user is responsible to meet the requirements of the U.S. Food and Drug Administration (FDA) and any other regulatory agencies. Before handling any other materials mentioned in the text, the user is advised to obtain available product safety information and take the necessary steps to ensure safety of use.



PATENT / INTELLECTUAL PROPERTY WARNING

PST disclaims any expressed or implied warranty against the infringement of any domestic or international patent/intellectual property right. PST does not warrant the use or sale of the products described herein will not infringe the claims of any domestic or international patent/intellectual property right covering the product itself, its use in combination with other products, or its use in the operation of any process.

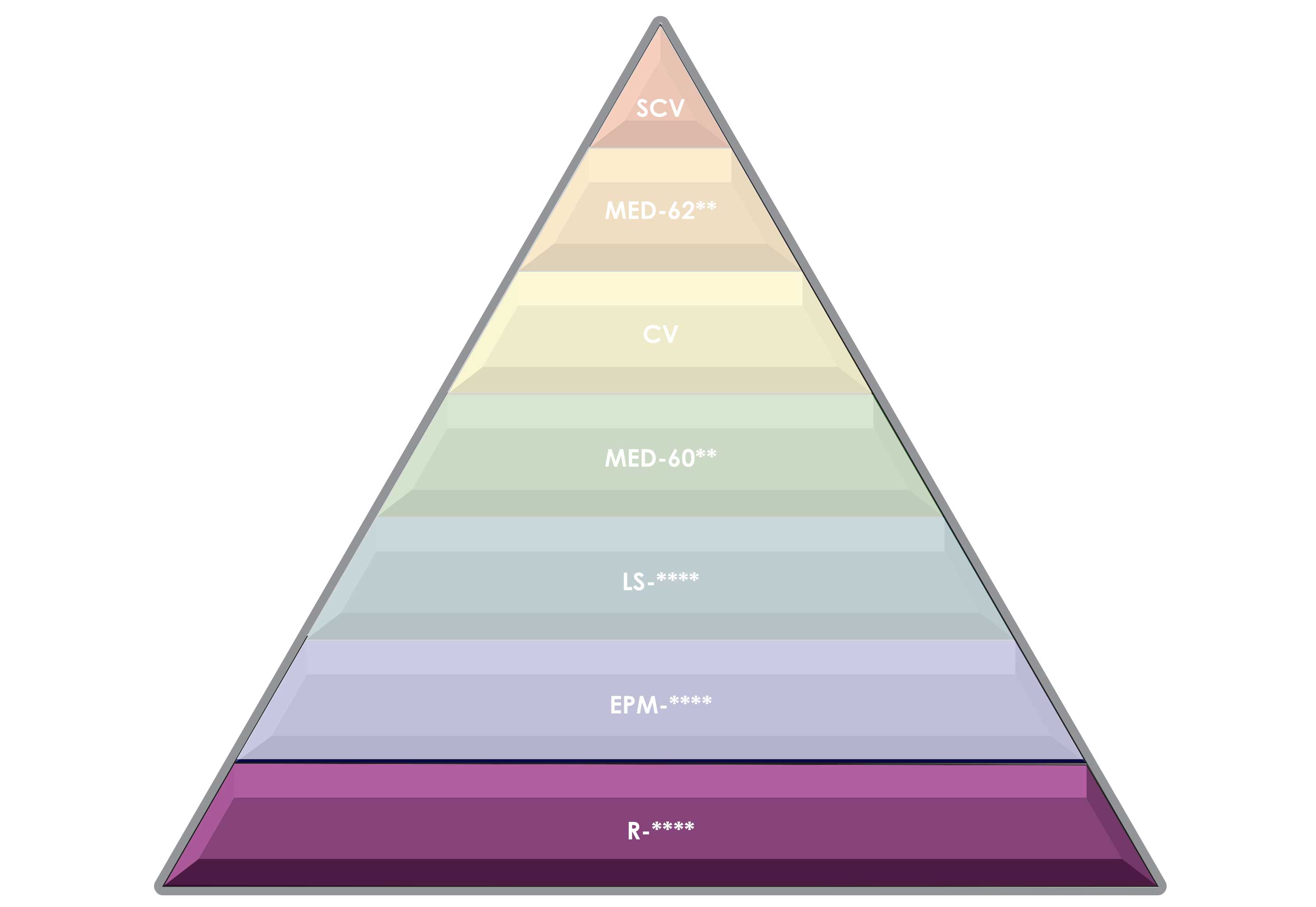

SCV
