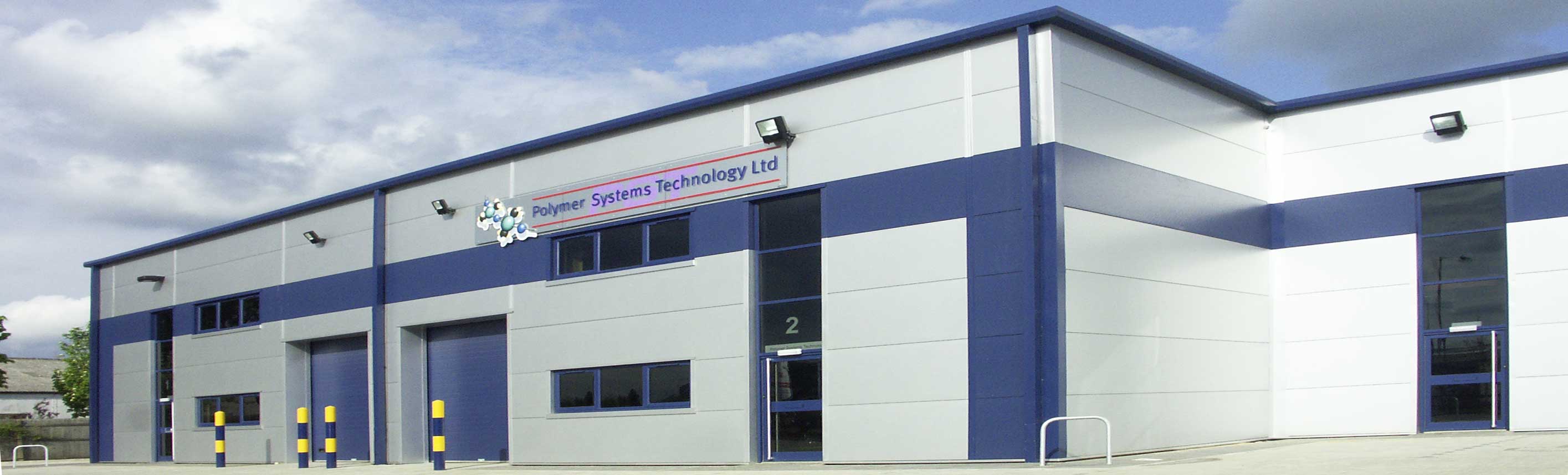

PST Head Office - Home of Silcone

Polymer Systems
Technology Limited

SCV - Ultra Low Outgassing™ (SCV‑****)


SCV

Tested per ASTM E595 per lot and must meet:
≤ 0.10 % TML
≤ 0.01% CVCM
125° @ 10-5 for 24 hrs.

SCV - Product listing

SCV-2590 » Ultra Low Outgassing™ Clear Silicone Elastomer

PROPERTIES
Typical PropertiesAverage Result
Uncured:
AppearanceTransparent
Viscosity, Part A8,000 cP (8,000 mPas)
Viscosity, tested 2 hours after catalyzation9,500 cP (9,500 mPas)
Cured: 15 minutes at 150°C (302°F)
Specific Gravity1.02
Durometer, Type A45
Tensile Strength950 psi (6.6 MPa)
Elongation125%
Collected Volatile Condensable Material (CVCM)0.004%
Total Mass Loss (TML)0.06%
Cured: 4 hours at 60°C (140°F)
Lap Shear Strength (primed w/ CF1-135)375 psi (2.6 MPa)

The above properties are tested on a lot-to-lot basis. Do not use as a basis for preparing specifications. Please contact NuSil Technology for assistance and recommendations in establishing particular specifications.

Recommended Primer CF1-135

Note: Some bonding applications may require the use of a primer.


SCV1-2590 » Ultra Low Outgassing™ Optically Clear Silicone

PROPERTIES
Typical PropertiesAverage Result
Uncured:
Appearance*Transparent
Viscosity, Part A*3,800 cP (3,800 mPas)
Viscosity, Part B*2,800 cP (2,800 mPas)
Work Time*4 hours
Cured: 15 minutes at 150°C (302°F)
Specific Gravity*1.02
Durometer, Type A*50
Tensile Strength*925 psi (6.4 MPa)
Elongation*90%
Lap Shear Strength* (primed w/ CF1-135)175 psi (1.2 MPa)
Coefficient of Linear Thermal Expansion, above Tg(-80°C to 250°C)400 ppm/°C (400µm/m/°C)
Extractable IonicsBelow MIL-STD-883E
Collected Volatile Condensable Material (CVCM)*0.004%
Total Mass Loss (TML)*0.04%

*The above properties are tested on a lot-to-lot basis. Do not use as a basis for preparing specifications. Please contact NuSil Technology for assistance and recommendations in establishing particular specifications.

Recommended Primer CF1-135

Note: Some bonding applications may require the use of a primer.


SCV2-2590 » Ultra Low Outgassing™ Clear SILICONE

PROPERTIES
Typical PropertiesAverage Result
Uncured:
Appearance*Transparent
Viscosity, Part A*3,500 cP (3,500 mPas)
Viscosity, tested 2 hours after catalyzation*6,500 cP (6,500 mPas)
Cured: 4 hours at 65°C (149°F)
Specific Gravity*1.04
Durometer, Type A*45
Tensile Strength*475 psi (3.3 MPa)
Elongation*85%
Lap Shear Strength* (primed w/CF1-135)250 psi (1.7 MPa)
Refractive Index1.43
Coefficient of Linear Expansion
Below Tg (-150°C to -115°C)10 ppm/°C (10µm/m/°C)
Above Tg (-95°C to 250°C)490 ppm/°C (490µm/m/°C)
Collected Volatile Condensable Material (CVCM)*0.008%
Total Mass Loss (TML)*0.05%

*The above properties are tested on a lot-to-lot basis. Do not use as a basis for preparing specifications. Please contact NuSil Technology for assistance and recommendations in establishing particular specifications.

Recommended Primer CF1-135

Note: Some bonding applications may require the use of a primer.


WARRANTY INFORMATION

The warranty period provided by Polymer systems Technology ltd (hereinafter “PST”) is 12 months from the date of shipment when stored below 40°C in original unopened containers. Unless PST provides a specific written warranty of fitness for a particular use, PST’s sole warranty is that the product will meet PST’s then current specification. PST specifically disclaims all other expressed or implied warranties, including, but not limited to, warranties of merchantability and fitness for use. The exclusive remedy and PST’s sole liability for Packaging Warranty 50 mL Side-by-Side Kit 12 Months 200 mL Side-by-Side Kit 400 ml Side-by-Side Kit 2 Pint Kit (910 g) 2 Gallon Kit (7.28 kg) 10 Gallon Kit (36.4 kg), Inc. All rights reserved. Trademarks are owned by PST or its affiliates unless otherwise noted. breach of warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted. PST expressly disclaims any liability for incidental or consequential damages.



WARNINGS ABOUT PRODUCT SAFETY

PST believes, to the best of its knowledge, that the information and data contained herein are accurate and reliable. The user is responsible to determine the material’s suitability and safety of use. NuSil Technology cannot know each application’s specific requirements and hereby notifies the user that it has not tested or determined this material’s suitability or safety for use in any application. The user is responsible to adequately test and determine the safety and suitability for their application and NuSil Technology makes no warranty concerning fitness for any use or purpose. PST has completed no testing to establish safety of use in any medical application. PST has tested this material only to determine if the product meets the applicable specifications. (Please contact PST for assistance and recommendations when establishing specifications.) When considering the use of PST products in a particular application, review the latest Material Safety Data Sheet and contact PST with any questions about product safety information. Do not use any chemical in a food, drug, cosmetic, or medical application or process until having determined the safety and legality of the use. The user is responsible to meet the requirements of the U.S. Food and Drug Administration (FDA) and any other regulatory agencies. Before handling any other materials mentioned in the text, the user is advised to obtain available product safety information and take the necessary steps to ensure safety of use.



PATENT / INTELLECTUAL PROPERTY WARNING

PST disclaims any expressed or implied warranty against the infringement of any domestic or international patent/intellectual property right. PST does not warrant the use or sale of the products described herein will not infringe the claims of any domestic or international patent/intellectual property right covering the product itself, its use in combination with other products, or its use in the operation of any process.
